AC a wɔde charge nneɛma a wɔaboaboa ano

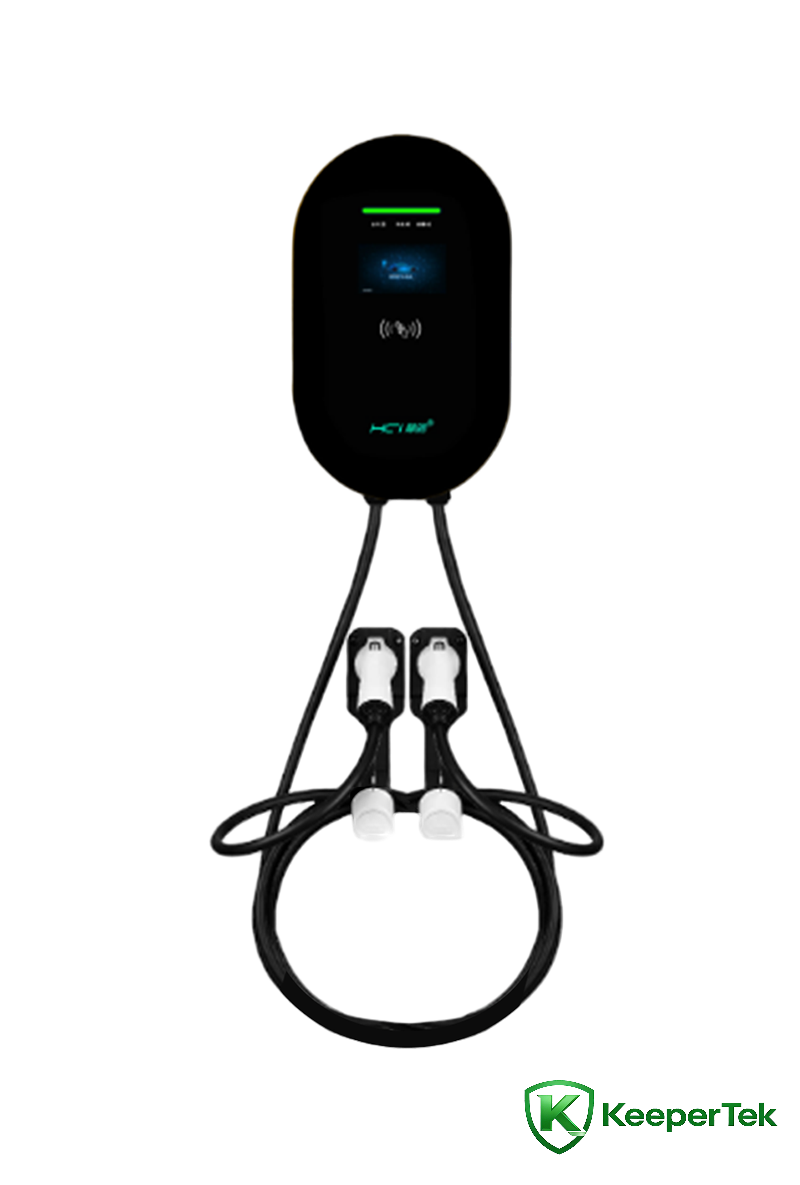

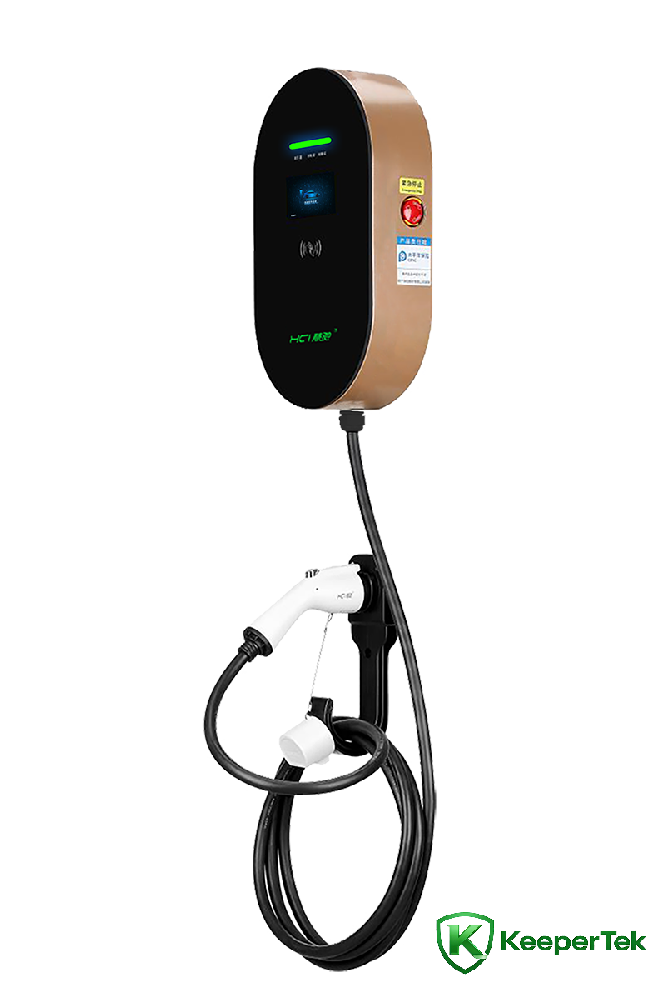

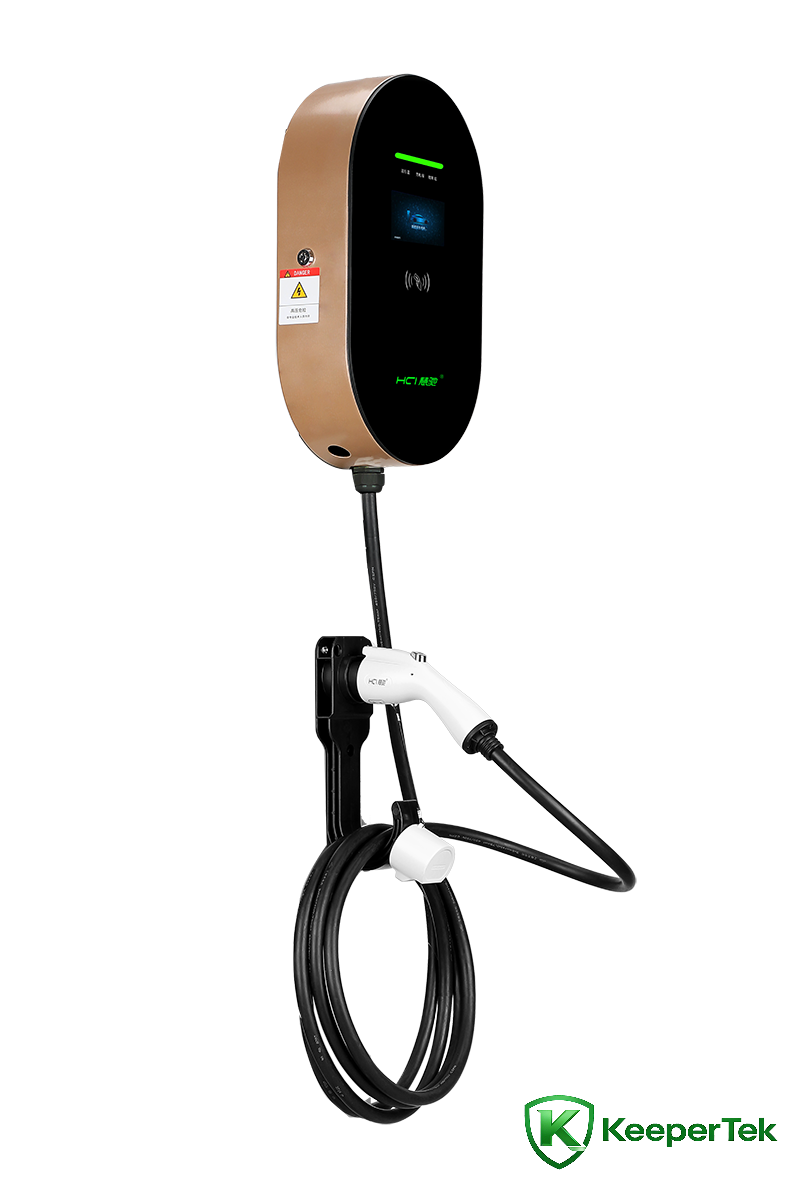

7/14/11/22KW wɔde asisi ɔfasu so Tuo biako ne tuo abien AC charge boa ano KT-HC01

Mfiridwuma mu nsusuwii ahorow

Nneɛma a ɛda adi: dade a wɔde ayɛ + ahwehwɛ a wɔahyɛ no den:

Ɔkwan a wɔfa so de si hɔ: wɔde si ɔfasu so a egyina fam (ɔdum a wobetumi apaw) .

Wiring kwan: ase kɔ mu ne ase fi akyi:

*Charging cable tenten (m): 5m (wobetumi ayɛ nea wɔpɛ) .

Nneɛma a wɔde hyɛ mu: AC220V±15%:

Nsɛm a wɔde hyɛ mu: 50±10Hz

Tumi a wɔahyɛ sɛ: 7KW/14KW/11KW/22KW:

Nsuo a ɛfiri mu ba: AC220V±15%

Maximum output mprempren: 32A * 2: .

Nsusuiɛ a ɛyɛ pɛpɛɛpɛ: Ɔfa 1

Mprempren anohyeto ahobammɔ bo: 1.1 mpɛn:

Onipa-mfiri ntam nkitahodi: LCD kyerɛwtohɔ, LED sɛnkyerɛnne kanea

Akwankyerɛ a wɔde di dwuma: tumi, charge, mfomso:

Charging mode: automatic full / fixed battery / fixed dodow / fixed bere

*Ɔkwan a wɔfa so tua: fa kaad tua/tua denam QR code a wobɛhwehwɛ so (wopɛ):

Mita ne sikatua: bere a wɔde di dwuma ho ka

Nkitahodi nhyehyɛe: Ethernet/4G (wɔpɛ):

*Data a wobue: Boa software platform a ɛto so abiɛsa a wɔde kɔ (wopɛ) .

*Mmoa ntrɛwmu: anim a wohu/license plate a wohu/parking space lock/parking radar (wopɛ):

Gyinapɛn a wɔde bedi dwuma: GBT20234, GBT18487, NBT33008, NBT33002

Management features: power-off memory, settable rates, tuntum ne fitaa lists, data nkitahodi, integrated card:

Ahobammɔ dwumadi: overvoltage ahobammɔ, undervoltage ahobammɔ, overload ahobammɔ, short circuit ahobammɔ, asase ahobammɔ, overtemperature ahobammɔ, anyinam ahobammɔ, ntɛmpɛ gyinabea ahobammɔ, leakage ahobammɔ

Nneɛma a atwa yɛn ho ahyia a ɛfata: dan mu/abɔnten:

Adwumayɛ mu hyew: -20°C～+70℃

Nsuo a ɛyɛ nwini: 5% kɔsi 95% a nsuo a ɛyɛ nwini nni mu:

Ahobanbɔ gyinabea: IP54

Ɔkwan a wɔfa so yɛ onwini: abɔde mu onwini:

Ahotoso (MTBF): ≥18000h

Nneɛma a wubetumi apaw: Wobetumi ayɛ atifi hɔ * nneɛma a wubetumi apaw no sɛnea wopɛ

Su

Ɛnam sɛ ɛyɛ fɛ na ɛnyɛ den nti, ade no ne AC charging interface, onipa-kɔmputa nkitahodi interface, anyinam ahoɔden ahobanbɔ nhyehyɛe, control, susuw, ahobammɔ ahobammɔ ne units afoforo abɔ mu kɛse. Wobetumi de adi dwuma ne anyinam ahoɔden kar a ɛwɔ kar mu chargers de ama akwan horow pii a wɔfa so charge te sɛ card swiping ne mobile payment.

1. Ɛwɔ tebea ho nsɛnkyerɛnne abiɛsa: tumi, charge ne mfomso.

2. Ɛwɔ dwumadi ahorow te sɛ ntɛmpɛ gyinabea nkitahodi si so dua detection, charge pon bue detection, charge tuo locking, ne nea ɛkeka ho.

3. Adwumayɛ a ɛnyɛ den: swipe kaad no na fi ase charge tẽẽ/scan QR code no de wo mobile phone fi ase charge

4. Charging adwuma: automatic full / dodow charge / bere charge / bo a wɔbɔ

5. Multi-mode adwumayɛ sohwɛ: mpɔtam hɔ settlement adwumayɛ/platform adwumayɛ

6. Ɔkwan a wɔfa so tua ka: kaad a wotua, WeChat/Alipay sikatua
