ɔkwan kɛse so pon

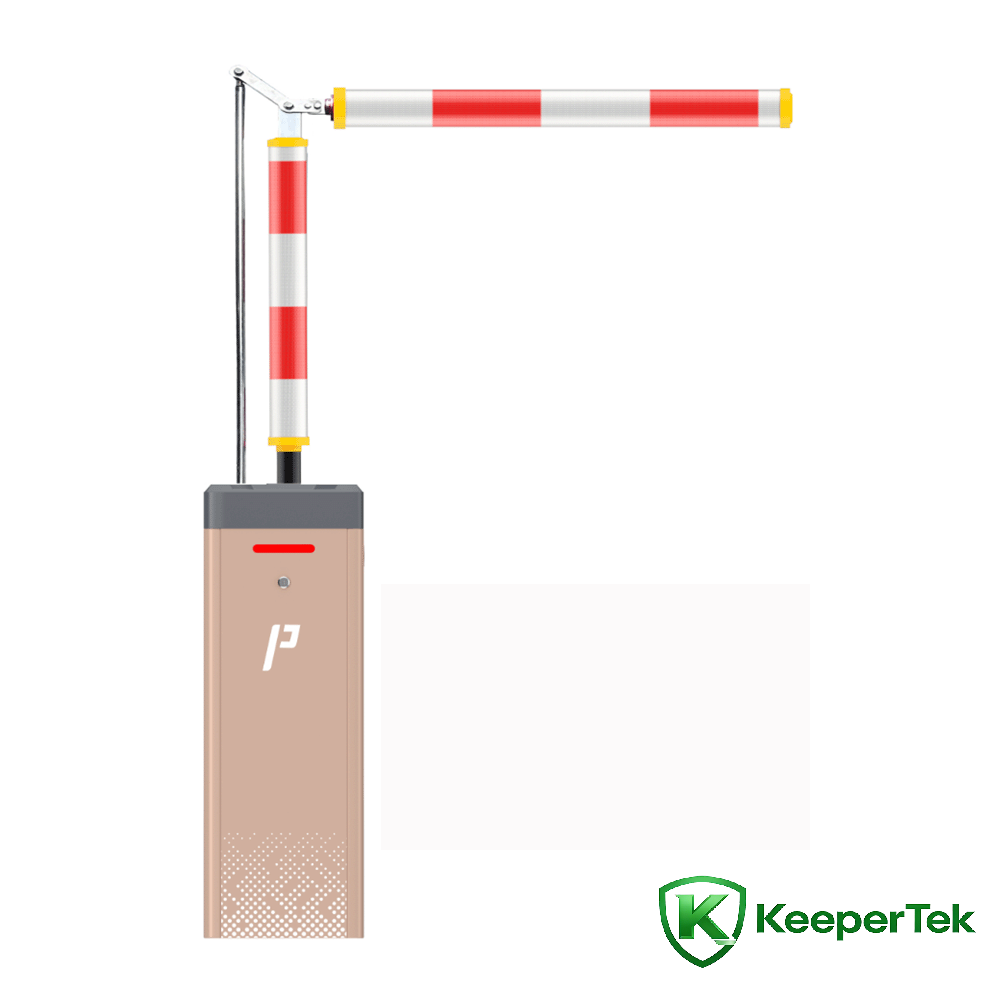

carbon fiber a wɔde yɛ nneɛma aba abaa a wɔabɔ no kurukuruwa ahoɔhare a ɛkɔ soro kwan breki a wɔde hyɛ mu KT-KL511

Mfiridwuma mu nsusuwii ahorow

Nsakraeɛ tumi a wɔde ma input voltage: AC220V + 10%, 50Hz

Controller input ahoɔden: DC24V±10%

Nneɛma a wɔde yɛ chassis: SPCC carbon dade

Kankyee type: ultra-high speed kankyee

Motor ahoɔden: ≤240W

Adaptable dua tenten: curved basa kurukuruwa dua ≤ 4 mita

Ahoɔhare a wɔde si fam: wotumi sesa wɔ sikani 0.6 mu

Anti-collision bar: mmoa

San adwuma bere a wohyia akwanside ahorow: wɔboa

Power outage pole lifting: wɔboa (ɛhwehwɛ 24V batere) .

Mu duru: ne mu duru nyinaa yɛ 50KG

Nkwa nna: Mpɛn ɔpepem 10

Remote control kwan: ≥50 mita (beae a ɛbue a biribiara ntwitware) .

Ahobanbɔ gyinabea: IP54

Adwumayɛ mu hyew: -25°C ~ 70℃

Adwumayɛ mu nsuo: ≤95% condensation biara nni hɔ

Chassis kɔla: tuntum/kɔla/sika kɔkɔɔ/dwetɛ

Nsɛm a wɔka kyerɛ: 335 × 285 × 976mm

Dwumadi nhyehyɛe

1. Two-stage okyinnsoromma gear transmission, etu mpɔn na wotumi de ho to so.

2. Slow sɔre ne asehwe yɛ nsakrae.

3. Anohyeto dwumadi no yɛ nea wotumi sesa.

4. Boa telefon a wokura kyin Bluetooth debugging adwuma.

5. Wobetumi ama dua no so ankasa sɛ anyinam ahoɔden atwa a.

6. Ahoɔhare a wɔde ma so ne nea wɔde si fam no yɛ nea wotumi sesa wɔ sikani 0.6 mu.

7. Ɛboa anti-collision ne detachment of the pole, na collision a pole no rensɛe dua no.

8. Asase so nkate, radar, ne IO hyɛn gyinabea anti-kar akwanhyia sɛnkyerɛnne input dwumadi ahorow.

9. Take-off, landing na gyae IO hyɛn gyinabea sɛnkyerɛnne input adwuma.

10. Akontaabu (po so ahyɛn) dwumadi.

11. LED hann IO hyɛn gyinabea output adwuma.

12. Kar kanea IO hyɛn gyinabea sɛnkyerɛnne output adwuma.

13. Mpɛn pii no bue na mpɛn pii no wɔato mu sɛnkyerɛnne output adwuma ma lifting ne lowering wɔ beae.

14. 485 ntwamutam nkitahodi afiri dwumadie.

15. Delayed poma drop adwuma.

16. San adwuma bere a wohyia akwanside ahorow.

17. Controller mfomso code display no ma nsiesie yɛ mmerɛw na ɛnyɛ den sɛ wɔde bedi dwuma.

18. IO port biako-safo kyinhyia kɔ soro ne fam adwuma.

19. Asase so nkate a ɛtaa bue na ɛtaa to mu dwumadi.

20. Kar biako ne dua biako a wɔde besiw towtua a wɔkwati ano.

21. Ogya nkitahodi sɛnkyerɛnne input adwuma.

22. I0 port no to signal input adwuma no mu.

23. 24V battery input adwuma.
