Adum a wɔma so a wɔko tia basabasayɛ

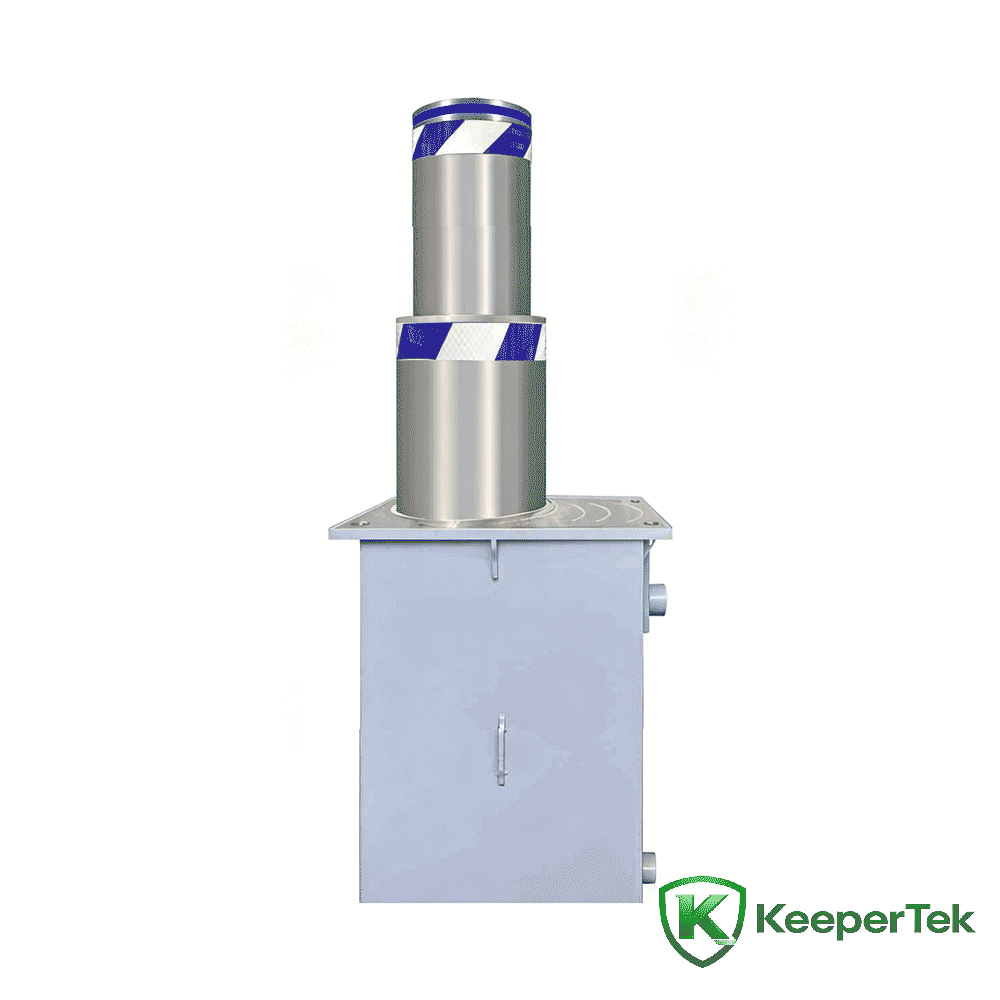

Double ɔfã shallow asie lifting adum KT-DX05

Mfiridwuma mu nsusuwii ahorow

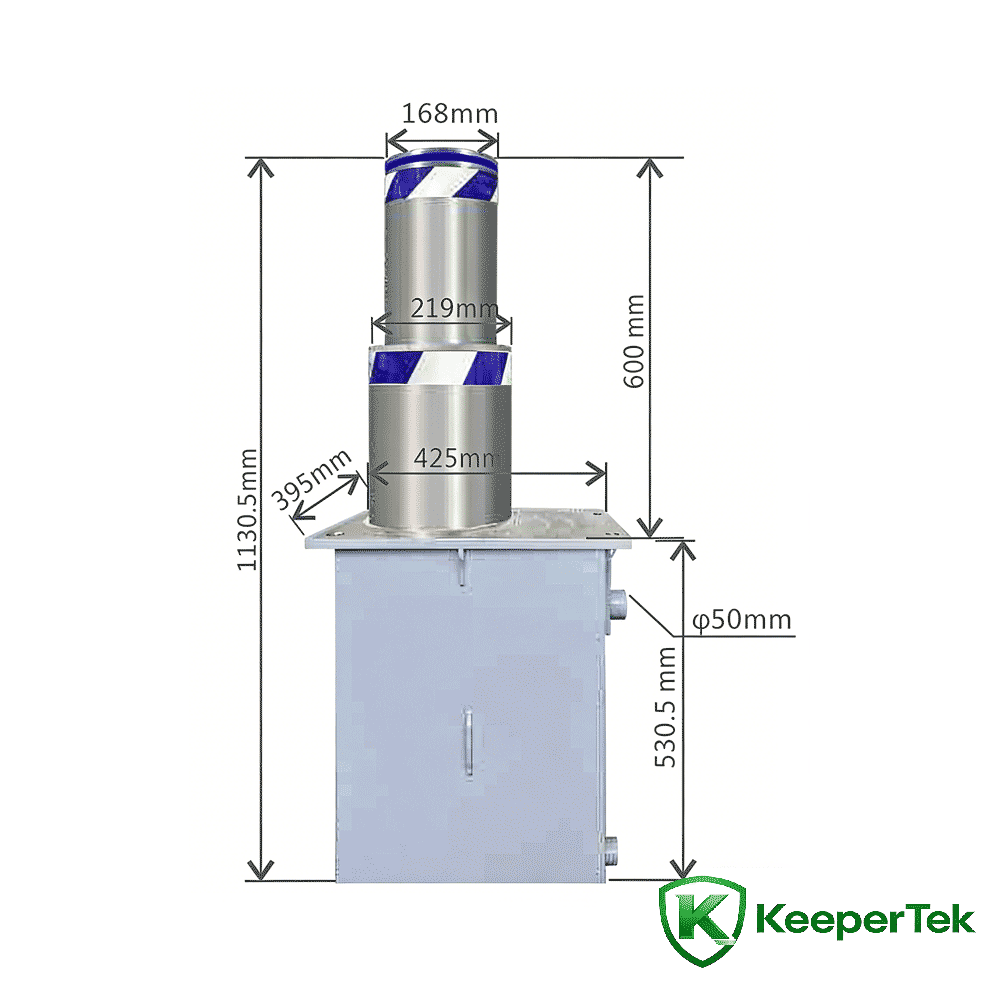

Cylinder no kɛse: 219mm + 168mm

Cylinder no sorokɔ: 300 + 300mm

Cylinder no kɛse: 6mm

Cylinder nneɛma: 304 dade a ɛnyɛ den

Ahoɔhare a wɔde ma nneɛma so: 2S～4S

Bokiti a wɔde ahyɛ mu no ho nsɛm: 425mmx395mmx530.5mm

Nsuo ntumi nkɔ mu grade: IP68

Adwumayɛ mu hyew: -35°C～75℃

Flange nkyerɛkyerɛmu: flange 425mmx395mmx kɛse 8mm

Nneɛma a wɔde ma: 220V

Tumi: 350W

Kɔkɔbɔ nsɛnkyerɛnne: ultra-high brightness reflective film, LED akanea

Emergency function: Wɔde EPS ntɛmpɛ ahoɔden a wɔde ma ne button biako a wɔde sian ahyɛ mu

Ɔkwan a wɔfa so di so: control box/wireless akyirikyiri control

Extended function license plate recognition/ogya alarm/akwan a wɔfa so di dwuma nhyehyɛe nkitahodi

Akwankyerɛ post ahorow dodow: 4

Su

Wobetumi de adi dwuma sɛnea ɛsɛ bere a kar a ɛde tɔn 8 abɔ no akyi;

Wobetumi de adi dwuma sɛnea ɛsɛ bere a wɔatumi agyina kar a emu duru yɛ tɔn 100 ano akyi.；

Nsuo ntumi nkɔ mu grade IP68, ɛda so ara tumi de di dwuma sɛnea ɛsɛ mpo bere a wɔde ahyɛ nsu mu akyi:

Ɔdan a ɛyɛ den na ɛyɛ den, adesoa kɛse tumi, kankyee a ɛkɔ so yiye ne nne a ɛba fam；

Sɛ wode microcontroller control di dwuma a, nhyehyɛe no dwumadi adwumayɛ yɛ nea ɛyɛ den na wotumi de ho to so, na ɛnyɛ den sɛ wɔde bɛka abom；

Wobetumi de nnwinnade afoforo te sɛ tumi krataa a wɔde hu nneɛma so, akwanside apon, akwan a wɔfa so kɔ mu, infrared, radar, asase so nkate, kar akanea, asorɔkye akwan, ogya alarm, ne nea ɛkeka ho ahwɛ so ahwɛ so.；

Sɛ anyinam ahoɔden twa anaasɛ ɛnyɛ adwuma yiye a, sɛ ɛho hia sɛ wɔma adum a wɔma so no si fam bere a wɔama so no a, wobetumi afa bɔtn a ɛwɔ control box no so no so asian adum no akɔ fam.；

Sɛ wɔde 5CM trɛw reflective film di dwuma a, reflectivity no betumi adu bɛboro 90%;

Wɔde LED kɔkɔbɔ kanea a ɛhyerɛn kɛse ahyɛ adum a ɛma nneɛma so no mu sɛ gyinapɛn, a ɛma kɔkɔbɔ nkɛntɛnso no tu mpɔn wɔ ɔkwan a etu mpɔn so anadwo. Control box nhyehyɛe no wɔ kɔkɔbɔ kanea bere control program a ebetumi ahyɛ kanea bere.； Wɔfa amanaman ntam hydraulic drive mfiridwuma a ɛdi kan no, nhyehyɛe no nyinaa yɛ nea ahobammɔ wom kɛse, wotumi de ho to so na ɛyɛ den. ； afiri a wɔde di dwuma wɔ akyirikyiri ； Ɛdenam wireless remote control so no, wobetumi adi akwan so apon a wɔma so ne nea wɔde si fam no so wɔ bɛyɛ mita 30 a atwa controller no ho ahyia (egyina radio nkitahodi tebea a ɛwɔ beae hɔ so). ；

Panel flange no gye anti-slip nhwɛso nhyehyɛe, na wobetumi apaw flange no kɛse afi 10mm/6mm; flange no mu duru a ɛwɔ adum no atifi yɛ 10mm/6mm;

Wogye customization a ɛnyɛ gyinapɛn tom. Wobetumi ayɛ adum a wɔma so no nyinaa kɛse, ne kɛse, ne sorokɔ, sɛnea ɛte, ahoɔhare, ne nea ɛkeka ho no sɛnea wɔpɛ.

Nsiesiei ahorow a wobetumi apaw

Ɔsorokɔ: ɔsorokɔ 400mm, ɔsorokɔ 800mm, ɔsorokɔ 1000mm, ɔsorokɔ 1200mm, sorokɔ 1500mm

Ne kɛse: 8mm kɛse, 10mm kɛse, 12mm kɛse, 16mm kɛse, 20mm kɛse

Ntwemu: ne ntwemu 168 + 219mm, ne ntwemu 219 + 273mm, ne ntwemu 273 + 325mm, afoforo
