swing aponkɛse

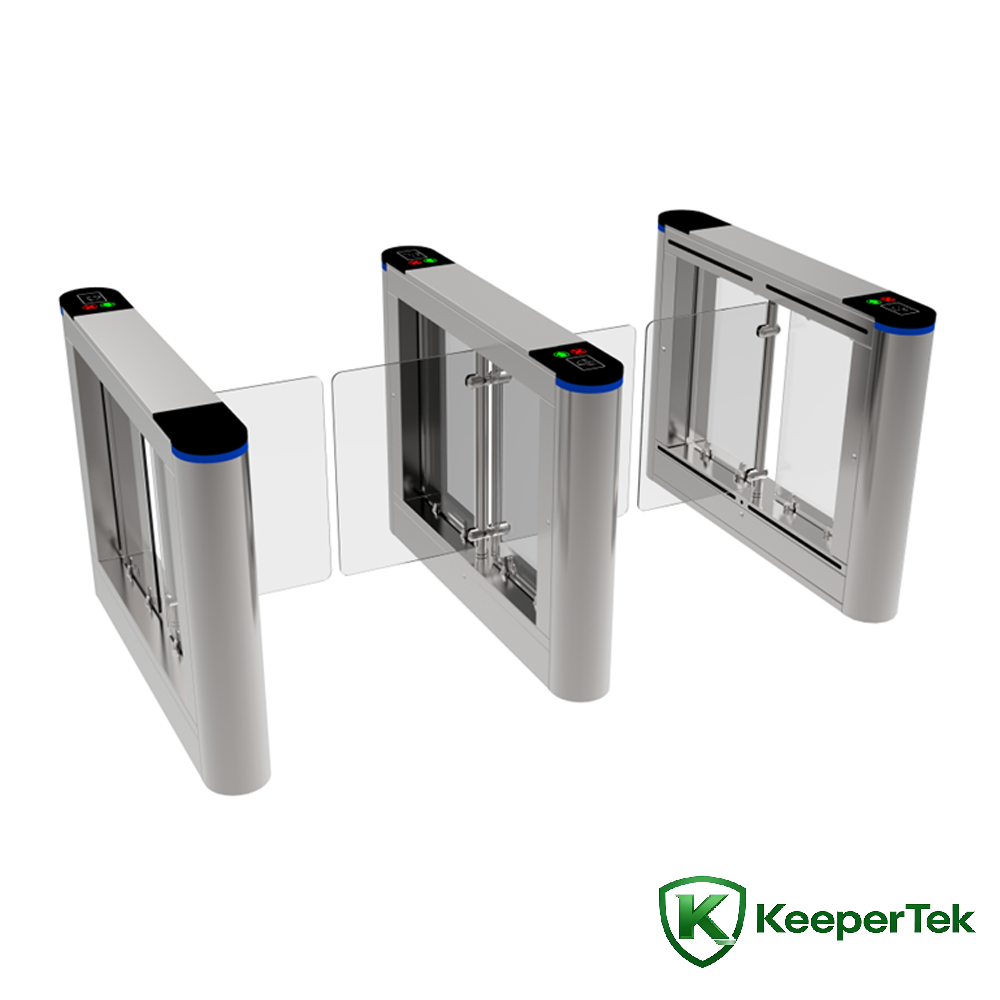

Afɛfɛde nketewa swing pon KT-JSDB13

Mfiridwuma mu nsusuwii ahorow

Gate composition: chassis, kankyee, control panel ne tumi a wɔde ma

Turning direction of turnstile: ɔkwan biako/ɔkwan abien

Kankyee drive mode: DC brushless motor

Bere a wobue apon no: sikani 0.5

Tumi a wɔde hyɛ mu: AC220V±10%, 50Hz±4% a wɔdannan no ankasa kɔ apon ano adwumayɛ ahoɔden DC24V, DC12V

Input interface: dry contact sɛnkyerɛnne, 12V level anaa 12V pulse sɛnkyerɛnne a pulse trɛw ≥100ms

Nkitahodi nkitahodi: Rs485 (akwansin ≤1200 mita), TCP / IP (wopɛ)

Baffle nneɛma: acrylic anaa dade a ɛnyɛ den

Infrared sensor: 4 abien abien gyinapɛn (wobetumi de aka ho) .

Adwumayɛ hyew: -10 ° C ~ 60 ° C, relative humidity 5% ~ 95%, enni condensation

Wobetumi de abɔnten mfiri abɔ mu: IC kaad akenkanfo, ID kaad akenkanfo, koodu scanning module, anim module, nsateaa nkyerɛwee module. (Ɛsɛ sɛ wɔyɛ mfiri a ɛwɔ akyi no sɛnea wɔpɛ)

Adwumayɛbea: dan mu, abɔnten

Ɔsom nkwa nna: bɛboro mpɛn ɔpepem 3 a wɔkɔ so bue na wɔto mu

Chassis kɛse: 1200 × 200 × 980MM
