Mfiri a wɔde siw kar akwan a ɛko tia basabasayɛ

Flip plate hydraulic afiri a wɔde siw kwan KT-DX18

Mfiridwuma mu nsusuwii ahorow

Ntrɛwmu a wɔde siw kwan: 800mm-5700mm

Ɔsorokɔ a wɔma so: 500mm-600mm

Panel no mu duru: 16mm/20mm/25mm

Panel nneɛma: A3 dade a ɛnyɛ den

Ahoɔhare a wɔde ma nneɛma so: 2S～4S

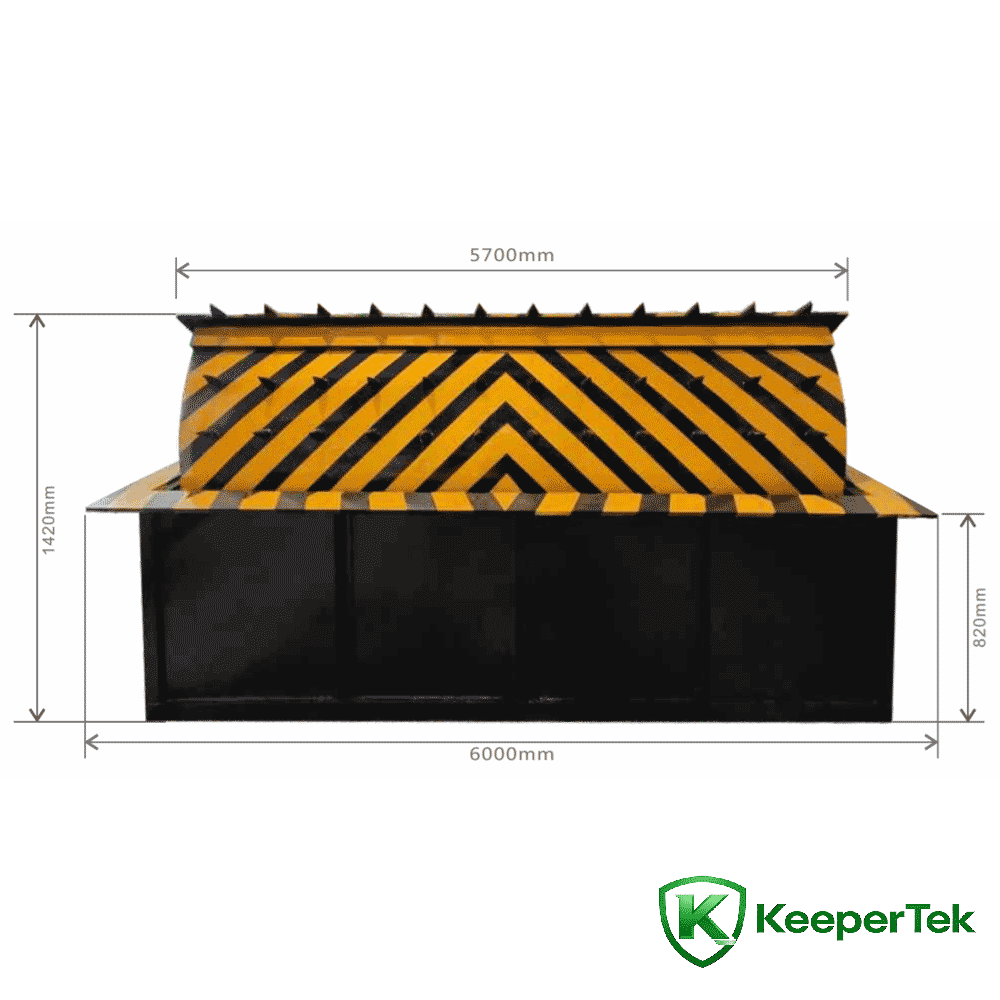

Nipadua ho nsɛm: 6000mm tenten x 1000mm trɛw x 820mm sorokɔ (wobetumi ayɛ no sɛnea wɔpɛ)

Nsuo ntumi nkɔ mu grade: IP68

Adwumayɛ mu hyew: -35°C～75℃

System control: anyinam ahoɔden + nsu

Voltage tumi: 220V ~ 380V / 3.7KW

LED kɔkɔbɔ kanea a wopɛ: LED kɔkɔbɔ kanea a wopɛ ma kɔkɔbɔ no da adi kɛse na ɛyɛ fɛ anadwo.

Emergency function: Wɔde EPS ntɛmpɛ ahoɔden a wɔde ma ne button biako a wɔde sian ahyɛ mu

Ɔkwan a wɔfa so di so: control box/wireless akyirikyiri control

Stainless dade nneɛma, 30mmx60mm (wobetumi ayɛ nea wɔpɛ)

Linkage function: Wobetumi de abɔ akwanside apon nhyehyɛe, kar akanea, AB apon, alarm nhyehyɛe, ne nea ɛkeka ho.

Su

Wɔakyekyɛ nhyehyɛe no nyinaa mu ayɛ no mfiri nnyinaso, nipadua a ɛdannan, nsu tumi nhyehyɛe ne anyinam ahoɔden nhyehyɛe.；

Adopting a new structural design, ɛyɛ den na ɛyɛ den, ɛtumi soa adesoa kɛseɛ, ɛwɔ compact structure ne nneɛma a ɛyɛ den, a ɛma nhyɛsoɔ a ɛko tia ne anti-collision adwumayɛ tu mpɔn kɛseɛ.；

Ahoɔhare a ɛyɛ adwuma a ɛyɛ mmerɛw, dede a ɛba fam, ɛyɛ nea wotumi sesa kɔ adwumayɛbea ahorow mu；

Split hydraulic design ma asase so siesie adwuma yɛ mmerɛw；

Sɛ wode chip system control box biako di dwuma a, ɛyɛ pintinn, wotumi de ho to so na ɛnyɛ den sɛ wode bɛka abom.；

Ɛwɔ ntɛmpɛ a wɔde ko tia amumɔyɛsɛm ne ogya a wɔde ko tia nkitahodi dwumadi ahorow, na ɛwɔ kar a wɔde hu ne ahobammɔ dwumadi te sɛ tumi krataa a wɔde hu, infrared a wɔde hu, radar, ne asase so nkate, a ebetumi ama wɔanya nyansa a wɔmfa nni dwuma.

Sɛ anyinam ahoɔden atwa a, ɔkwan a wɔde siw kwan no boa ma wɔde nsa ma nneɛma so；

Panel no yɛ integrally hyehyɛe, welding nhyehyɛe biara nni hɔ, fɛfɛɛfɛ, ahoɔden ne anti-collision；

Wɔde paint a ɛkorɔn a ɛko tia nkannare ne mfiridwuma mu sticker a ɛma hann yɛ adwuma.

Som sɛ ahoɔfɛ ne kɔkɔbɔ；

Nsiesiei ahorow a wobetumi apaw

Nneɛma a ɛyɛ den: Ne kɛse yɛ 16mm Ne kɛse 20mm Ne kɛse yɛ 25mm
