DC charging a wɔaboaboa ano

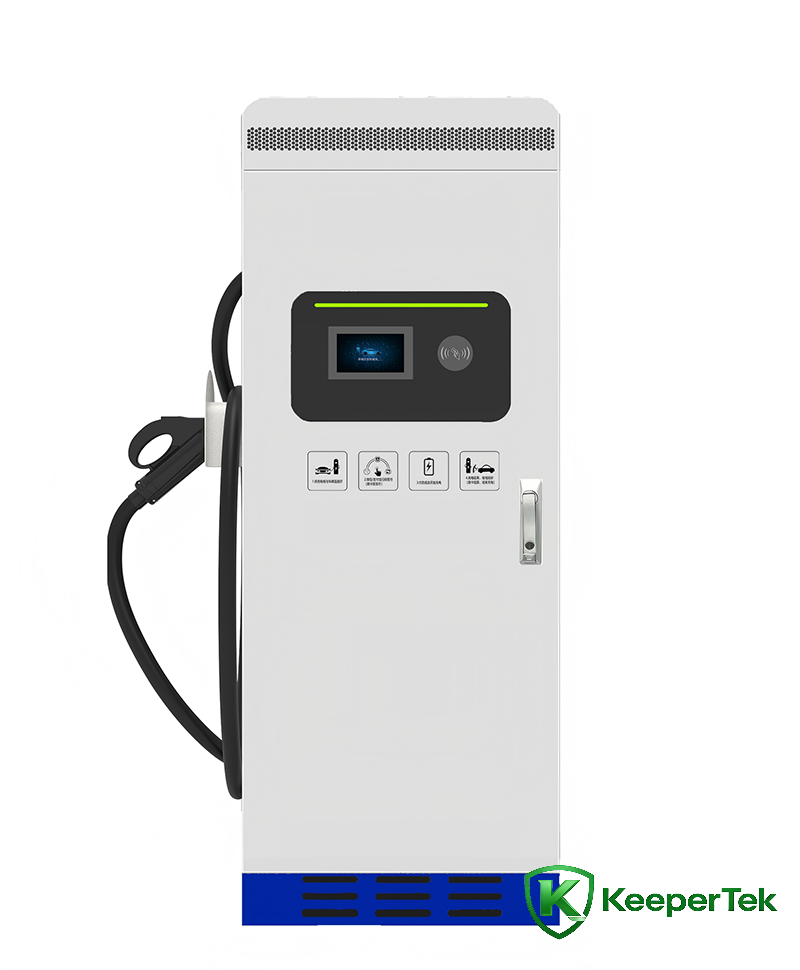

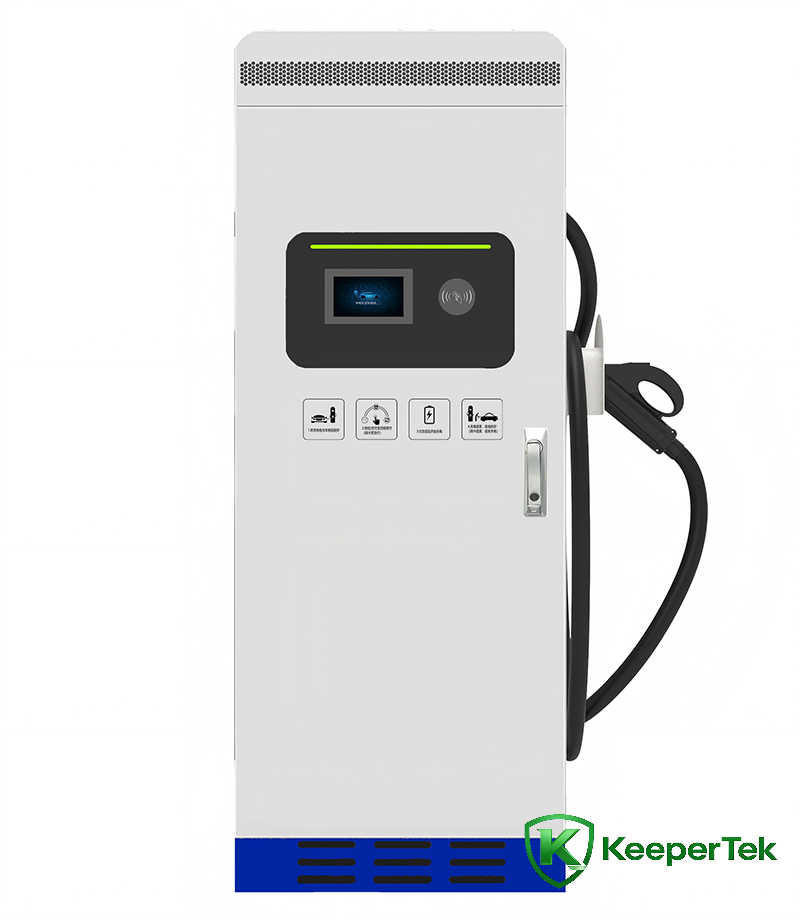

40/60/80KW Fam-gyina DC charging boa ano KT-HC11

Mfiridwuma mu nsusuwii ahorow

Nneɛma a ɛda adi: dade krataa + ahwehwɛ a wɔahyɛ no den

Ɔkwan a wɔfa so de si hɔ: wogyina fam

Wiring kwan: ase kɔ mu ne ase kɔ

*Charging cable tenten (m): 5m (wobetumi ayɛ nea wɔpɛ) .

Nneɛma a wɔde hyɛ mu: AC380V±15%

Nsɛm a wɔde hyɛ mu: 50±1Hz

Tumi a wɔahyɛ sɛ: 40KW

Nsuo a ɛfiri mu ba: DC200-1000V

Maximum output mprempren: 134A

Nsusuwii a ɛyɛ pɛpɛɛpɛ: 0.5 level

Mprempren anohyeto ahobammɔ bo: 1.1 mpɛn

Onipa ne mfiri ntam nkitahodi: 7-inch LCD touch screen, LED kyerɛ kanea

Charging mode: auto-stop bere a woabɔ charge koraa/swipe card na woabɔ charge

*Ɔkwan a wɔfa so tua: fa kaad tua/tua denam QR code a wobɛhwehwɛ so (wobetumi ayɛ no sɛnea wopɛ)

Nkitahodi nhyehyɛe: Ethernet/RS485/4G (wopɛ) .

Gyinapɛn a wɔde bedi dwuma: GB/T20234.1-2015, GB/T 27930-2015, NB/T 33008.1-2013, GB/T 29318-2012

Ahobammɔ dwumadi: overvoltage ahobammɔ, undervoltage ahobammɔ, overload ahobammɔ, short circuit ahobammɔ, asase ahobammɔ, overtemperature ahobammɔ, anyinam ahobammɔ, leakage ahobammɔ

Nneɛma a atwa yɛn ho ahyia a ɛfata: dan mu/abɔnten

Adwumayɛ mu hyew: -20°C～+50℃

Nsuo a ɛyɛ nwini: 5% kɔsi 95% a nsuo a ɛyɛ nwini nni mu

Ahobanbɔ gyinabea: IP54

Ɔkwan a wɔfa so yɛ onwini: abɔde mu onwini

Nneɛma a wubetumi apaw: Wobetumi ayɛ atifi hɔ * nneɛma a wubetumi apaw no sɛnea wopɛ

Su

Supports 40/60/80KW multi-power flexible paw, DC ntɛmntɛm charging, kɛse tiaa charging bere.

Fam-gyinabea a wɔaka abom nhyehyɛe, nhyehyɛe a ɛyɛ den, ɛyɛ mmerɛw sɛ wɔde besisi hɔ, a ɛfata ma dan mu ne abɔnten scenes ahorow.

Wide voltage output DC200-1000V, a ɛne anyinam ahoɔden kar dodow no ara a ɛwɔ gua so hyia.

Wɔde LCD touch screen a ɛyɛ fɛ ahyɛ mu, na ɛnyɛ den sɛ wode bedi dwuma na ɛda charge data adi wɔ bere ankasa mu.

Boa akwan horow pii a wɔfa so yɛ adwuma ne sikatua te sɛ kaad swiping, QR code scanning, ne APP de di adwumayɛ ahiade ho dwuma.

Ɛwɔ ahobanbɔ ahorow pii te sɛ overvoltage, undervoltage, overload, short circuit, overtemperature, anyinam ahobammɔ, leakage ne ntɛmpɛ gyinabea.

Ɛboa Ethernet ne 4G nkitahodi, na wobetumi de akɔ mununkum atenae no so ama akyirikyiri ahwɛ ne sohwɛ.

Boa anyinam ahoɔden ho ka, bere a wɔde di dwuma ho ka, ne rate customization, a ɛyɛ nsakrae ma ɛne aguadi dwumadi ahorow hyia.

Ahobanbɔ grade no yɛ IP54, a ɛtumi yɛ adwuma pintinn wɔ abɔnten na ɛyɛ nsakraeɛ ma ɛne nneɛma a atwa yɛn ho ahyia a ɛyɛ -20°C～+50°C hyia.

Ɛboa power-off memory ne fault self-diagnosis, na ɛtumi trɛw anim a wohu, license plate a wohu, ne parking space lock linkage mu.
