DC charging a wɔaboaboa ano

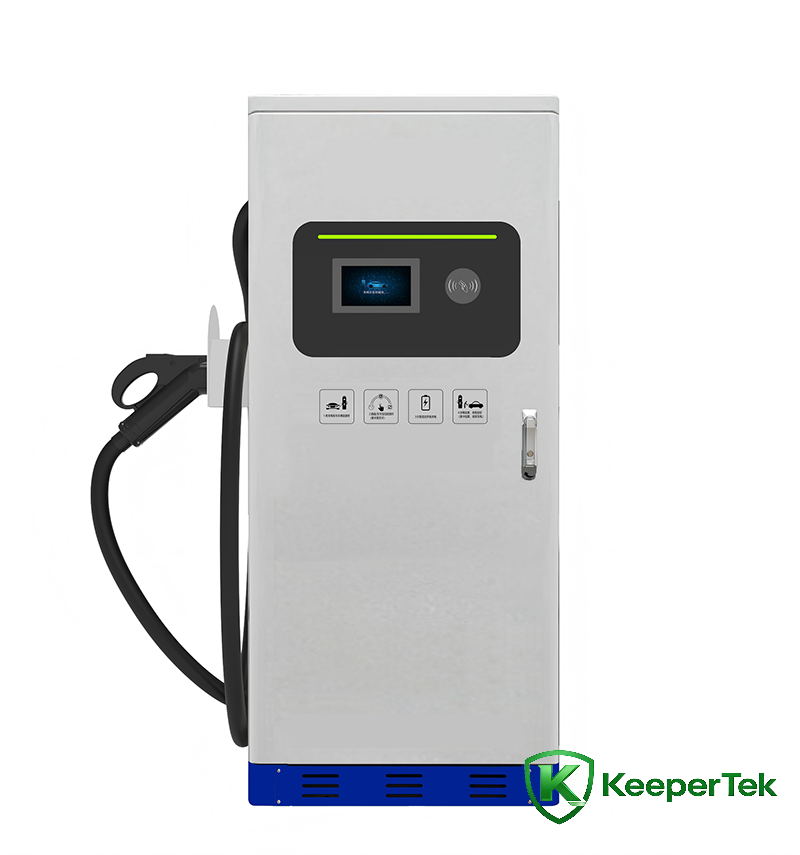

120KW/240KW/360KW/400KW fam-gyinabea DC charging a wɔaboaboa ano KT-HC12

Mfiridwuma mu nsusuwii ahorow

Nneɛma a wɔde yɛ: dade a wɔde ayɛ + ahwehwɛ a wɔahyɛ no den:

Ɔkwan a wɔfa so de si hɔ: wogyina fam

Wiring kwan: ase kɔ mu ne ase fi akyi:

*Charging cable tenten (m): 5m (wobetumi ayɛ nea wɔpɛ) .

Nneɛma a wɔde hyɛ mu: AC380V±15%:

Nsɛm a wɔde hyɛ mu: 50±1Hz

Rated tumi: 60KW ~ 240KW:

Nsuo a ɛfiri mu ba: DC200-1000V

Nea ɛsen biara a efi mu ba mprempren: Nea ɛsen biara 200A/250A:

Smart mita no pɛpɛɛpɛyɛ gyinabea: Ɔfa 2.0

Mprempren anohyeto ahobammɔ bo: 1.1 mpɛn:

Onipa ne mfiri ntam nkitahodi: 7-inch LCD touch screen, LED kyerɛ kanea

Akwankyerɛ a ɛfa dwumadie ho: tumi, charge, alarm:

Charging mode: automatic full / fixed tumi / fixed dodow / fixed bere

*Ɔkwan a wɔfa so tua: Fa kaad tua/tua denam QR code a wobɛhwehwɛ so (wobetumi ayɛ no sɛnea wopɛ):

Mita ne sikatua: anyinam ahoɔden ho ka (apɛde gyinabea 1.0) .

Nkitahodi nkitahodi: Ethernet/RS485/4G (wɔpɛ):

*Data a wobue: Boa software platform a ɛto so abiɛsa a wɔde kɔ so (wobetumi ayɛ no sɛnea wɔpɛ) .

*Mmoa ntrɛwmu: anim a wohu/tumi krataa mprɛte a wohu/parking space lock/parking radar (customizable):

Gyinapɛn a wɔde bedi dwuma: GB\T 20234, GB\T 18487, NB\T 33008, NB\T 33002

Management features: power-off memory, settable rates, tuntum ne fitaa lists, data nkitahodi, integrated card:

Ahobammɔ dwumadi: overvoltage ahobammɔ, undervoltage ahobammɔ, overload ahobammɔ, short circuit ahobammɔ, asase ahobammɔ, overtemperature ahobammɔ, anyinam ahobammɔ, ntɛmpɛ gyinabea ahobammɔ, leakage ahobammɔ

Nneɛma a atwa yɛn ho ahyia a ɛfata: dan mu/abɔnten:

Adwumayɛ mu hyew: -20°C～+50℃

Nsuo a ɛyɛ nwini: 5% kɔsi 95% a nsuo a ɛyɛ nwini nni mu:

Ahobanbɔ gyinabea: IP54

Ɔkwan a wɔfa so ma onwini: Mframa a wɔhyɛ ma ɛyɛ nwini a nyansa wom:

Ahotoso (MTBF): ≥18000h

Nneɛma a wubetumi apaw: Wobetumi ayɛ atifi hɔ * nneɛma a wubetumi apaw no sɛnea wopɛ

Su

Supports 120/240/360/400KW multi-power fã optional, biako ne abien tuo nhyehyɛe yɛ flexible, hyia tumi kɛse DC ntɛmntɛm charging ahiade.

Ultra-wide voltage output DC200‐1000V, a ɛne anyinam ahoɔden akwantufo kar ahorow nyinaa hyia koraa, kar a wɔde fa nneɛma, bɔs ne mfonini afoforo.

Ɛfa rectifier module a ɛyɛ adwuma yiye, ɛwɔ ahoɔhare a ɛbɔ ntɛmntɛm, ɛboa ahoɔden kyekyɛ a nyansa wom, na ɛma beae no a wɔde di dwuma ne adwumayɛ mu mmɔdenbɔ tu mpɔn.

Wɔde touch screen kɛse a ɛyɛ fɛ ne status indicator lights ahyɛ mu, na adwumayɛ no yɛ mmerɛw na wobetumi ayɛ charge data ne mfomso ho nsɛm ho mfonini wɔ bere ankasa mu.

Ɛboa akwan pii te sɛ card swiping, QR code scanning, APP, ne contactless payment, na wobetumi de abɔ cloud platform no ho de anya akyirikyiri management ne time-sharing billing.

Ɛwɔ ahobammɔ ahobammɔ a ɛyɛ pɛpɛɛpɛ te sɛ overvoltage, undervoltage, overload, short circuit, overtemperature, anyinam ahobammɔ, leakage, ne ntɛmpɛ gyinabea, na adwumayɛ no gyina pintinn na wotumi de ho to so.
