Afiri a wɔde hu anim

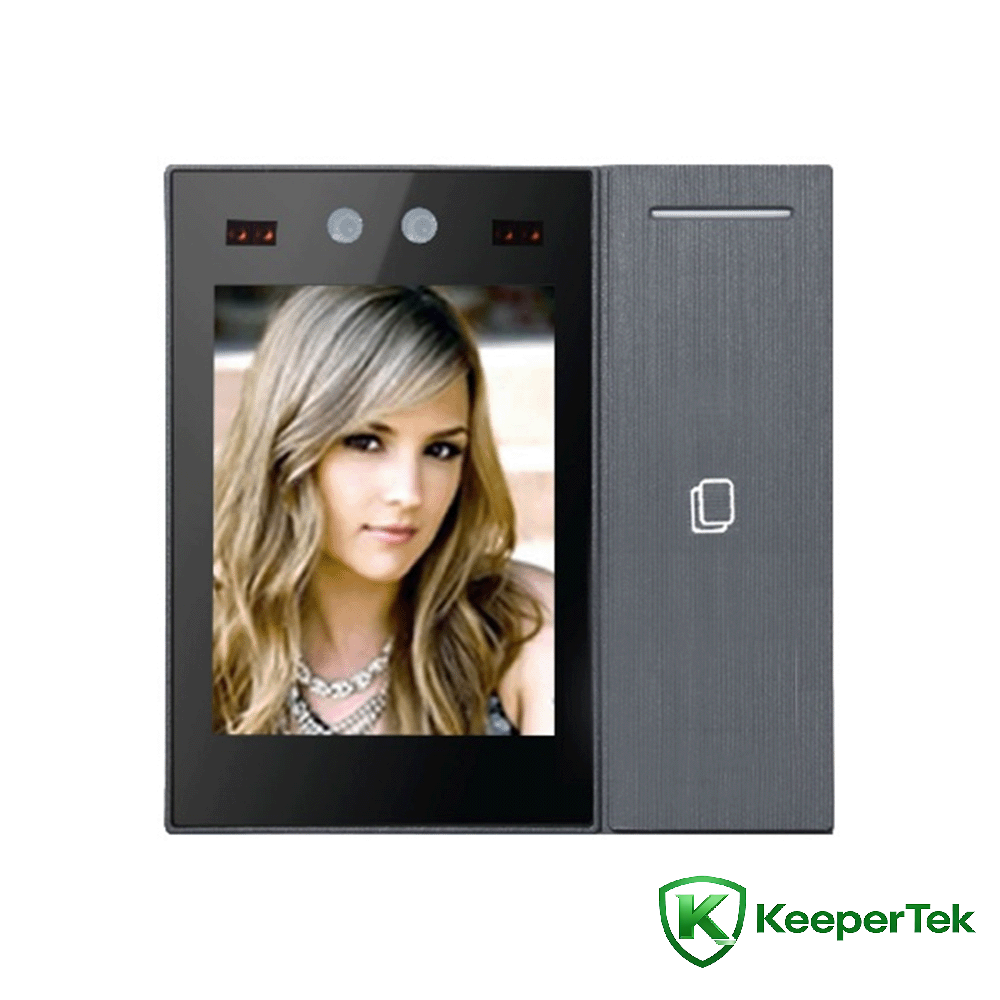

2.8Anim swipe card a ne kɛse yɛ nsateakwaa biako afidie KT-FR001

Mfiridwuma mu nsusuwii ahorow

Processor: ARM processor a ɛyɛ adwuma yiye

Dwumadi nhyehyɛe: Linux dwumadie nhyehyɛe

Kaad swiping module: 13.56MHz frequency band kaad hu, boa ISO / IEC 14443 TypeA, boa optional 125KHz ID kaad hu adwuma

WiFi module: 2.4GHz/5GHz WiFi SoC chip, IEEE 802.11a/b/g/n baseband ne RF circuit a wɔaka abom, downlink rate a ɛsen biara a ɛyɛ 72.2Mbps

Ethernet: 100Mbps Ethernet hyɛn gyinabea

Screen: LCD screen a ne kɛse yɛ nsateakwaa 2.8

Ka: Ka a obi tumi ka ho

Recognition kwan: 0.3 ~ 1.5 mita

Anim anim: digrii 30 benkum ne nifa, digrii 30 kɔ soro ne fam

Bere a wɔde hu: ennu sikani 0.5

Anim tumi: 2000

Kyerɛwtohɔ tumi: 50000

Tumi a wɔde hyɛ mu: DC12V/1A

Netwɛk nkitahodi: 1 100M Ethernet hyɛn gyinabea

Wiegand ntamgyinafoɔ: 1 Wiegand afiri

Ɔpon sensor interface: 1 ɔpon sensor input

Ɔpon ano bue interface: 1 ɔpon bue input

Relay ntamgyinafo: 1 relay aba

USB nkitahodi: 1 USB2.0 nkitahodi (type-C) .

Camera: Binocular camera, hann a wotumi hu ne near-infrared, boa nipadua a ɛte ase a wohu

Pixels a etu mpɔn: Pixels ɔpepem 1 a etu mpɔn

Nsɛnkyerɛnne ne dede ntam nsonsonoe: ≥50db (AGC OFF) .

Wide dynamic range: 100db, ISP algorithm fã bi a ɛda adi wɔ anim

Ɔhyew a wɔde yɛ adwuma: -10°C kosi +50℃

Adwumayɛ mu nsuo: 10% ~ 90% nsuo a ɛyɛ nwini, nsuo a ɛyɛ nwini biara nni mu

Adwinnade ahoɔden: 10W (MAX) .

Ahobanbɔ gyinabea: IP42

Tumi a wɔde ma: DC12V/1A

Aguade no kɛse: 86 * 86 * 17 (mm)

Su

CPU a wɔasisi wɔ fie

·Boa binocular live nipadua detection

·Adwumayɛ mu hyew: -10°C- +50℃

·Sɛ wode LINUX dwumadie nhyehyɛeɛ di dwuma a, nhyehyɛeɛ no gyina hɔ pintinn

·Mean mmirikatu bere ntam huammɔdi MTBF>50000h

·Boa wired network nkitahodi ne WiFi nkitahodi dwumadi ahorow

·Afiri no boa binding to the smart access control ne attendance management platform no default so.

·Host no wɔ card swiping module a wɔde ahyɛ mu a ɛbɛboa ID card swiping dwumadie no ntrɛmu.

·Afiri no wɔ akanea a ɛkyerɛ kɔla abiɛsa a wɔde ahyɛ mu a egyina nea efii nokwaredi mu bae so bisa.

·2.8-inch capacitive touch screen, mfonini smear anaasɛ ɛkyɛ biara nni hɔ

·Afiri no boa anim-akyi touch screen ne local login to backend management, asɛmmisa, ne nhyehyɛe a ɛwɔ afiri no mu.

·Unique anim recognition algorithm, hu anim pɛpɛɛpɛ, anim hu bere no nnu 0.5s

·Mfiri no nipadua yɛ ketewaa na ɛyɛ fɛ, ɛfata koraa ma ɔfese ne nhyiam dan nketewa a wɔde di dwuma wɔ ɔkwan a wɔfa so kɔ mu ne nea wofi mu no mu.

·Rich hardware interfaces (USB2.0, relay, ɔpon bue input, ɔpon sensor input, Wiegand output, ne nea ɛkeka ho)
