Afiri a wɔde hu anim

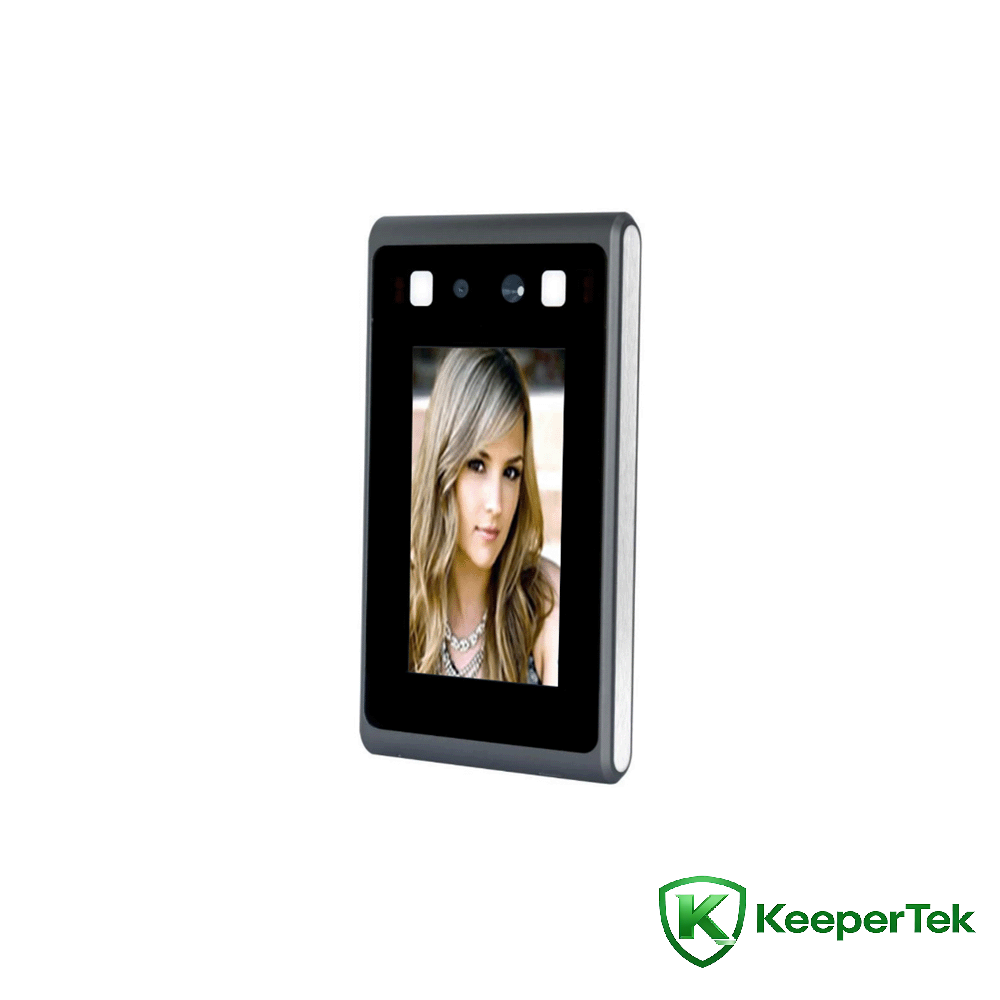

4.3inch nnipa Anim adida twitwi Kaad a wɔde afrafra afidie KT-FR002

Mfiridwuma mu nsusuwii ahorow

Nneɛma a wɔde yɛ adwuma: Dual-Core ARM Cortex-A7, @1.0GHz

Dwumadi nhyehyɛe: Linux dwumadie nhyehyɛe

Nneɛma a wɔkora so: Boa TF kaad akorae (wɔpɛ) .

Mfoninitwa afiri: Binocular, piksel ɔpepem 2.1 a etu mpɔn, 1920*1080

Mfoninitwa mfiri: 1/2.8 "Nkɔso Scan CMOS

Ahwehwɛ: 4.5mm

Kaad swiping module: nea wopɛ, 13.56MHz, ID kaad nɔma a ɛtoatoa so, Mifare, NFC

Wifi module: IEEE 802.11b / g / n gyinapɛn, boa 2.4GHz frequency band, ahoɔhare kwan 1Mbps-150Mbps

Touch screen: mmoa, capacitive pii-ka screen

Ɔkasafo: gyinapɛn, nne a wɔbɔ no betumi ayɛ nea wɔpɛ

Recognition sorokɔ: 1.2 ~ 2.2 mita, anim adjustable

Recognition kwan: 0.3 ~ 1.5 mita

Anim anim: digrii 30 benkum ne nifa, digrii 30 kɔ soro ne fam

Bere a wɔde hu: ennu sikani 0.5

Nneɛma a wɔkora so: 60,000 snapshot records

Anim tumi: 20,000

Tumi a wɔde hyɛ mu: DC12V/2A

Netwɛk ntam nkitahodi: 1 RJ45 10M/100M adaptive Ethernet hyɛn gyinabea

Wiegand ntamgyinafoɔ: 1 Wiegand nkitahodiɛ afiri, 1 Wiegand ntam nkitahodiɛ a wɔde hyɛ mu

Alarm interface: 1 ogya alarm input, 1 alarm output

Ɔpon sensor ntamgyinafo: 1 ɔpon sensor ntam nkitahodi input

Ɔpon ano bue interface: 1 ɔpon bue interface input

Doorbell interface: 1 ɔpon ano dɔn interface output

Ɔpon ano lock interface: 1 ɔpon lock interface output

Nkitahodi nkitahodi: 1 RS485 nkitahodi nkitahodi

Mfoninitwa afiri: Binocular camera, ahwehwɛ nyinaa, hann a wotumi hu ne near-infrared, boa nipadua a ɛte ase a wohu

Pixels a etu mpɔn: Pixels ɔpepem 2.1 a etu mpɔn, 1920*1080

Hann a ɛba fam koraa: kɔla 0.01Lux @F1.2 (ICR); tuntum ne fitaa 0.001Lux @F1.2 (ICR) .

Nsɛnkyerɛnne ne dede ntam nsonsonoe: ≥50db (AGC OFF) .

Screen no nsusuwii: 480 * 272

Adwumayɛ mu hyew: -20°C - +55℃

Adwumayɛ mu nsuo: 0 ~ 90% relative humidity, no condensation

Adwinnade ahoɔden: 10W(MAX)

Nkyene a wɔde petepete so dodow: Rp6 anaa nea ɛboro saa

Antistatic: nkitahodi ± 4KV, mframa ± 8KV

Tumi a wɔde ma: DC12V/2A

Ahobanbɔ gyinabea: IP42

Screen no ho nsɛm: 4.3-inch capacitive multi-touch screen

Adwinnade kɛse: 160 (tenten) * 88 (trɛw) * 17 (ne kɛse) mm

Su

Boa binocular live nipadua detection

Ɛboa anim tracking ne exposure nnipa a wɔretu wɔ backlight mmeae a emu yɛ den

Unique anim recognition algorithm, hu anim pɛpɛɛpɛ, anim hu bere no nnu 0.5s

CPU a wɔasisi wɔ fie

Sɛ wode LINUX dwumadie nhyehyɛeɛ di dwuma a, nhyehyɛeɛ no gyina hɔ pintinn

Mean mmirikatu bere ntam huammɔdi MTBF>50000h

Boa anim ntotoho nhomakorabea ahorow a ɛkɔ 20,000+ ne 60,000 a wogye tom ho kyerɛwtohɔ

Adwumayɛ mu hyew: -20°C-55℃

Indoor IP42 nsuo ne mfutuma ntumi nkɔ mu

Boa anti-tamper alarm

Boa microphone input audio ne akasam output ɔdio

Rich hardware interfaces (I / O, WG26, WG34, RJ45, ɔpon sensor, ɔpon ano dɔn, ɔpon a wobue, alarm, RS485)

4.3-inch capacitive multi-touch screen, mfonini smear anaasɛ ɛkyɛ biara nni hɔ
