Afiri a wɔde hu anim

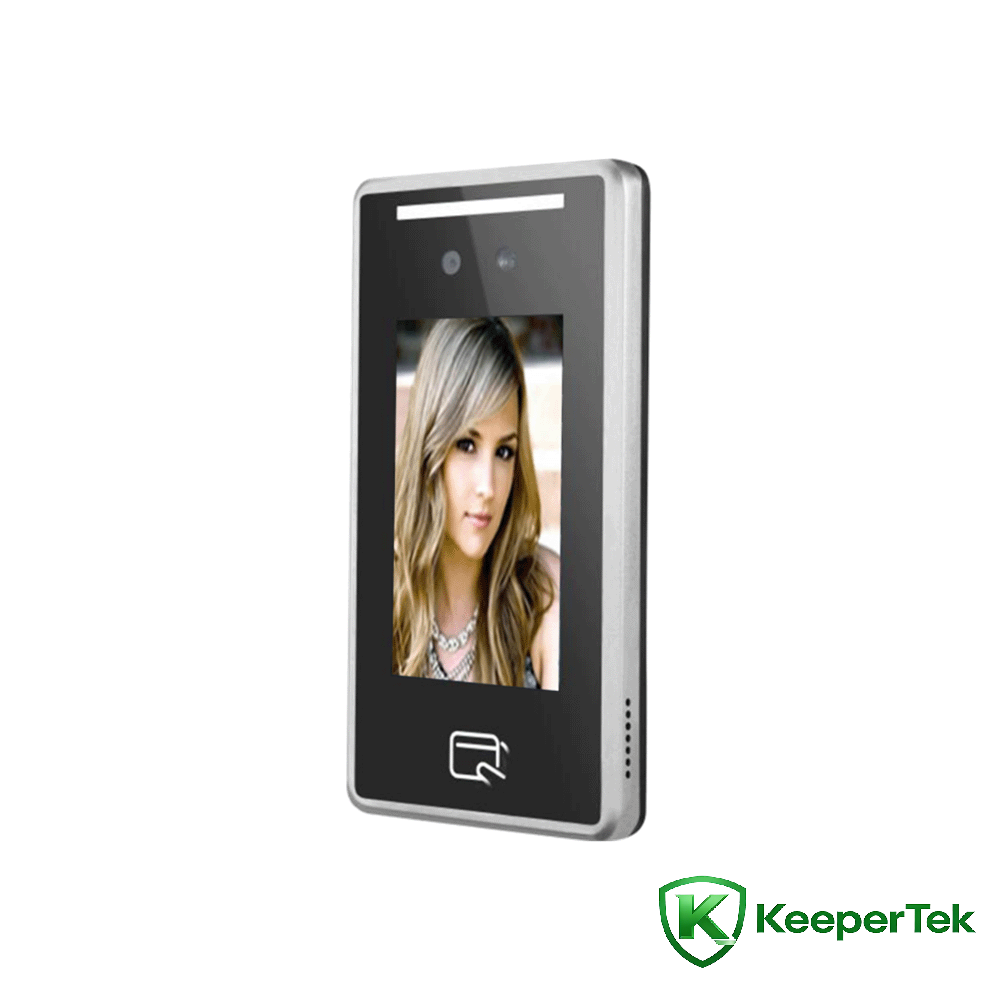

4.3inch nnipa Anim adida twitwi Kaad a wɔaka abom afidie KT-FR003

Mfiridwuma mu nsusuwii ahorow

Nneɛma a wɔde yɛ adwuma: Dual-Core ARM Cortex-A7, @1.0GHz

Nneɛma a wɔkora so: RAM: 256MB ROM: 8GB

Dwumadi nhyehyɛe: Linux dwumadie nhyehyɛe

Lens: 4.32mm focal tenten

Kaad swiping module: 13.56MHz high-frequency kaad swiping module, ɛboa ISO/IEC 14443 TypeA, ɛboa akenkan IC kaad

Ethernet: 100M Ethernet port, a ɛne IEEE802.3/802.3u gyinapɛn hyia, boa IPV4 ne IPV6 protocols

Wifi module: 2.4GHz biako-frequency WiFi nkitahodi, boa 802.11 b / g protocol, dodow a ɛsen biara 54Mbps

Bluetooth module: BT 4.2 Ɔkwan a wɔfa so yɛ nsakrae: DPSK, DQPSK, GFSK Nkrasɛm dodow: 1Mbps ~ 3Mbps

Screen: IPS LCD screen a ne kɛse yɛ nsateakwaa 4.3

Ka: Ka a obi tumi ka ho

Akasafo: nnyigyei a ɛyɛ den a wotumi sesa, tumi 1W

Recognition kwan: 0.3 ~ 1.5 mita

Anim anim: digrii 30 benkum ne nifa, digrii 30 kɔ soro ne fam

Bere a wɔde hu: ennu sikani 0.5

Anim tumi: 1000

Kyerɛwtohɔ tumi: 70,000 kyerɛwtohɔ

Tumi a wɔde hyɛ mu: DC12V/2A

Netwɛk nkitahodi: 1 100M Ethernet hyɛn gyinabea

Wiegand ntamgyinafoɔ: 1 Wiegand afiri

Alarm interface: 1 kwan alarm input

Ɔpon sensor interface: 1 ɔpon sensor input

Ɔpon ano bue interface: 1 ɔpon bue input

Nkitahodi nkitahodi: 1 RS485 nkitahodi nkitahodi

USB nkitahodi: 1 USB2.0 Type A nkitahodi

Camera: Binocular camera, hann a wotumi hu ne near-infrared, boa nipadua a ɛte ase a wohu

Pixels a etu mpɔn: Pixels ɔpepem 2.1 a etu mpɔn

Hann a ɛba fam koraa: kɔla 0.01Lux @F1.2 (ICR); tuntum ne fitaa 0.001Lux @F1.2 (ICR) .

Nsɛnkyerɛnne ne dede ntam nsonsonoe: ≥50db (AGC OFF) .

Wide dynamic range: 100db, ISP algorithm fã bi a ɛda adi wɔ anim

Ɔhyew a wɔde yɛ adwuma: -10°C kosi +50℃

Adwumayɛ mu nsuo: 10% ~ 90% nsuo a ɛyɛ nwini, nsuo a ɛyɛ nwini biara nni mu

Adwinnade ahoɔden: 10W (MAX) .

ESD: nkitahodi ± 4KV, mframa ± 6KV

Ahobanbɔ gyinabea: IP42

Tumi a wɔde ma: DC12V/2A

Aguade no kɛse: 173.5 * 90.0 * 24.0 (mm)

Su

Boa binocular live nipadua detection

·Ɛboa anim tracking ne exposure nnipa a wɔretu wɔ backlight mmeae a emu yɛ den

·Unique anim recognition algorithm, hu anim pɛpɛɛpɛ, anim hu bere no nnu 0.5s

·CPU a wɔasisi wɔ fie

·Sɛ wode LINUX dwumadie nhyehyɛeɛ di dwuma a, nhyehyɛeɛ no gyina hɔ pintinn

·Mean mmirikatu bere ntam huammɔdi MTBF>50000h

·Adwumayɛ mu hyew: -10°C- +50℃

·Boa front-end mfiri nhyehyeɛ, adwumayɛfoɔ dinkyerɛw, nsɛm a wɔbisa ne dwumadie foforɔ

·Rich hardware interfaces (USB2.0, ɔpon sensor input, ɔpon bue input, alarm input, Wiegand output, ne nea ɛkeka ho)

·4.3-inch capacitive touch screen, mfonini smear anaasɛ ɛkyɛ biara nni hɔ
