Afiri a wɔde hu anim

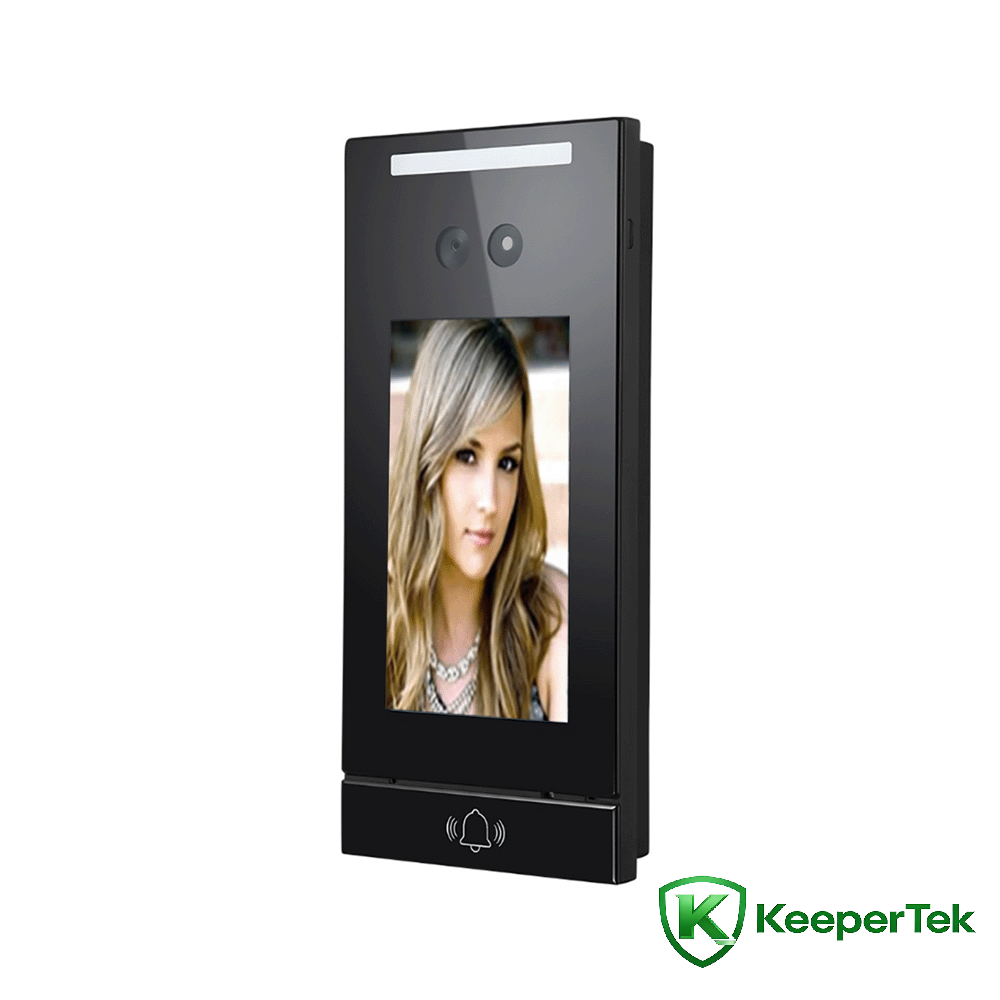

5inch nnipa Anim adida twitwi Kaad a wɔde afrafra afidie KT- FR004

Mfiridwuma mu nsusuwii ahorow

processor a wɔde yɛ adwuma Ofie dual-core processor + 1G nkaeɛ + 8G EMMC

nhyehyɛe a wɔde di dwuma Linux dwumadie nhyehyɛeɛ

akoraeɛ Boa TF kaad a wɔkora so (wɔpɛ) .

Mfoninitwa afiri Binocular, piksel ɔpepem 2.1 a etu mpɔn, 1920 * 1080

Afiri a wɔde twa mfonini 1/2.8 "Nkɔso Scan CMOS

Swipe kaad module no Ɛboa LTE-TDD/LTE-FDD/HSPA +/GSM/GPRS/EDGE gyinapɛn ahorow pii, ɛboa kɔsi 150Mbps download rate, ne 50Mbps upload rate

Wifi module no Sɛ wopɛ, 2.4GHz WiFi SoC chip, IEEE 802.11b/g/n baseband ne RF circuit a wɔaka abom, a ɛboro 72.2Mbit/s honam fam layer rate

ɔkasafo Standard nhyehyɛe, nne a wɔbɔ no mu nsɛm betumi ayɛ nea wɔpɛ

Nkyerɛkyerɛmu sorokɔ 1.2 ~ 2.3 mita, anim a wotumi sesa

recognition kwan a ɛda ntam 0.5 ~ 1.5 mita

anim a ɛyɛ animtiaabu Digrii 30 benkum ne nifa, digrii 30 kɔ soro ne fam

bere a wɔde hu nneɛma Ennu sikani 0.5

nneɛma a wɔkora so 80,000 a wɔayɛ no ntɛm ara ho kyerɛwtohɔ

anim tumi 10,000 nkratafa

Kaad ahorow a wobetumi de swipe 13.56MHz, ɛboa Mifare S50, S70 kaad, ultralinght kaad, NTAG kaad, DESFire D21, D41, D81, CPU kaad a ɛnyɛ nkitahodi

Tumi a wɔde hyɛ mu DC12V/2A

ntwamutam ntam nkitahodi 1 RJ45 10M/100M Ethernet hyɛn gyinabea a ɛyɛ nsakrae, Gigabit ntwamutam hyɛn gyinabea a wotumi sesa

Wiegand ntam nkitahodi 1 Wiegand ntam nkitahodi afiri, 1 Wiegand ntam nkitahodi afiri

Alarm ntam nkitahodi 1 ogya alarm input, 1 alarm output

Ɔpon sensor ntam nkitahodi 1 kwan pon sensor ntam nkitahodi input

Bue ɔpon ntam nkitahodi 1 ɔpon bue interface input

ɔpon ano dɔn ntam nkitahodi 1 ɔpon ano dɔn interface output

ɔpon ano apon ntam nkitahodi 1 channel pon lock interface output

Nkitahodi ho nhyehyɛe 1 kwan RS485 nkitahodi ntam nkitahodi

mfoninitwa afiri Binocular camera, all-glass lens, hann a wotumi hu ne near-infrared, boa nipadua a ɛte ase a wohu

Pixels a etu mpɔn 2.1 ɔpepem a etu mpɔn piksel, 1920*1080

hann a ɛba fam koraa Kɔla 0.01Lux @F1.2 (ICR) na ɛwɔ hɔ; tuntum ne fitaa 0.001Lux @F1.2 (ICR) .

sɛnkyerɛnne ne dede ntam nsonsonoe ≥50db(AGC OFF) .

wide dynamic range a ɛyɛ den 120db, ISP algorithm fã bi a ɛda adi wɔ anim

video a wɔde kyerɛw nsɛm H.265 Main Profile encoding/H.264 BP/MP/HP nkyerɛwde/MJPEG nkyerɛwde

adwumayɛ mu hyew-20℃ - +60℃

Adwumayɛ mu nsu a ɛyɛ nwini 0 ~ 90% relative humidity, ɛnyɛ condensation

Adwinnade ahoɔden 15W(MAX)

Nkyene a wɔde petepete so dodow Rp level 6 ne nea ɛboro saa

antistatic a ɛko tia Nkitahodi ± 6KV, mframa ± 8KV

powered by DC12V/2A

Ahobammɔ gyinabea IP42

Screen no ho nsɛm a wɔakyerɛw 5-inch high-definition IPS screen a ɛyɛ fɛ

Nnwinnade no kɛse 205 (ne tenten) * 95 (ne tɛtrɛtɛ) * 24.5 (ne kɛse) mm

Su

Boa binocular live nipadua detection

Ɛboa anim tracking ne exposure nnipa a wɔretu wɔ backlight mmeae a emu yɛ den

Unique anim recognition algorithm, hu anim pɛpɛɛpɛ, anim hu bere no nnu 0.5s

CPU a wɔasisi wɔ fie

Sɛ wode LINUX dwumadie nhyehyɛeɛ di dwuma a, nhyehyɛeɛ no gyina hɔ pintinn

H.265 encoding format video stream no nam ONVIF protocol ne GB28181 protocol so na ɛka NVR ne mfiri afoforo a wɔde sie ho tẽẽ.

Ɛboa mpɔtam hɔ nneɛma a wɔkora so wɔ TF kaad mu, a wɔkɔ so sie mfonini ahorow afe 1 ne video ahorow ɔsram 1 anaa nea ɛboro saa (egyina tumi a TF kaad a wopɛ no tumi yɛ so)

Mean mmirikatu bere ntam huammɔdi MTBF>50000h

Ɛboa 10,000+ anim ntotoho nhomakorabea ne 80,000 a wohu kyerɛwtohɔ

Nkitahodi nhyehyɛe a ɛyɛ fɛ, a ɛboa TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, SMTP, UPNP, MQTT nhyehyɛe a ɛwɔ Windows/Linux ne nhyiam afoforo ase

Adwumayɛ mu hyew: -20°C- +60℃

Indoor IP42 nsuo ne mfutuma ntumi nkɔ mu

Boa anti-tamper alarm

Host a wɔasisi IC card akenkanfo

Boa microphone input audio ne akasam output ɔdio

Rich hardware interfaces (I / O, WG26, WG34, RJ45, ɔpon sensor, ɔpon ano dɔn, ɔpon a wobue, alarm, RS485)

5-inch IPS full-viewing HD display, ɛnyɛ smear anaasɛ ɛkyɛ wɔ mfonini ahorow mu

Automatic gain ne automatic white balance ma kwan ma wɔsan de mfonini no kɔla ankasa ba wɔ abɔde mu

Built-in tuntum hann level sensor a wɔahyira so ama video surveillance, pɛpɛɛpɛ kɛse a ɛba fam-hann hu

3D dede a wɔtew so ne mframa a ɛkɔ mu ho mfiridwuma ma mfonini ahorow a wɔhwɛ so wɔ hann a ɛba fam ase no mu da hɔ na ɛkɔ akyiri

Support code stream na me frame ntamgyinafo nhyehyɛe

Boa video beae no fã bi a wosiw ano

Boa ROI encoding a wɔde yɛ adwuma

Automatic white balance, nsaano white balance wɔ hɔ

Boa maximum exposure bere nhyehyɛe

Boa nhyehyɛe a wɔde hwɛ telefon a wokura kyin so

Boa 2D dede a wɔtew so ne 3D dede a wɔtew so

Boa recording nhyehyɛe bere bere ne upload kwan nhyehyɛe

Ɛboa video a ɛhyerɛn, nsonsonoe, hue, saturation, ne gamma adjustment

Mmoa nhyehyɛe a ɛsen biara automatic exposure bere

Supports anim nyansa exposure ne anim nyansa enhancement nhyehyɛe
