Afiri a wɔde hu anim

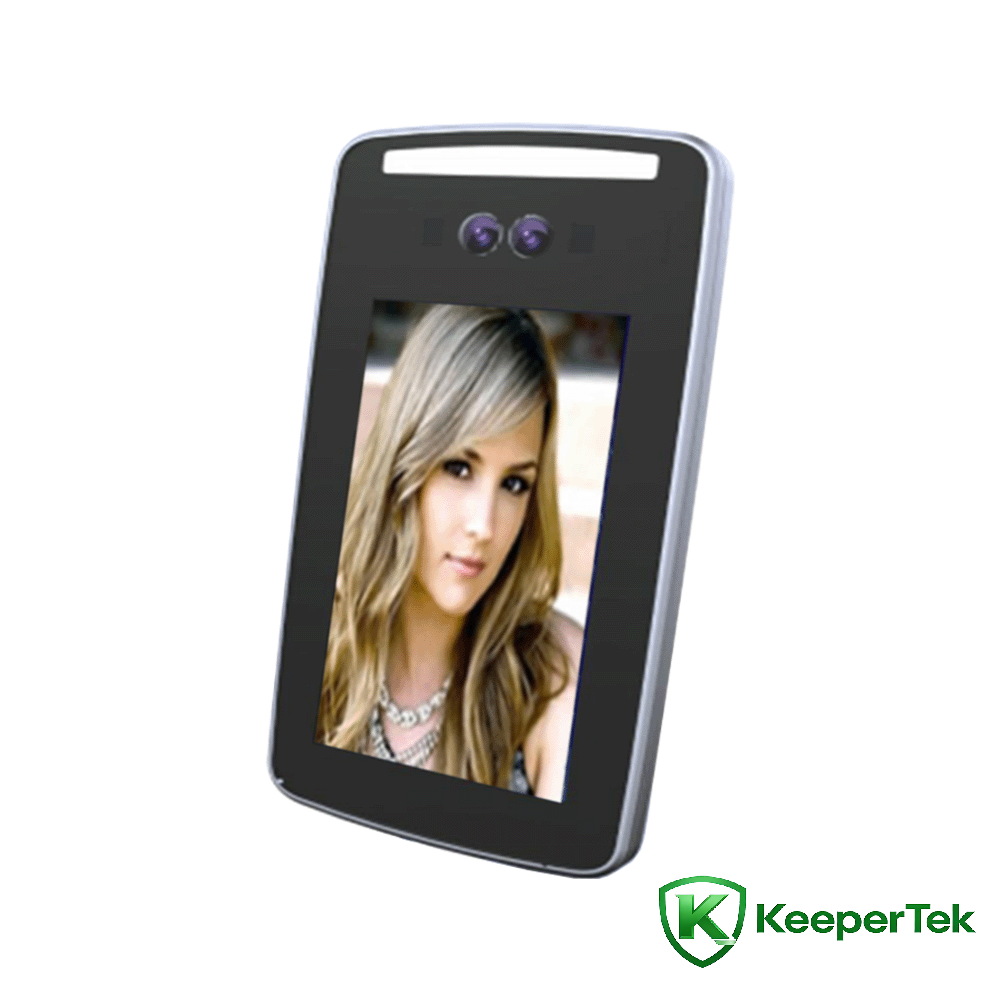

7inch nnipa Afiri a ɛma wohu anim a ɛyɛ ne nyinaa wɔ biako mu KT- FR005

Mfiridwuma mu nsusuwii ahorow

Processor: dwumadie a ɛwɔ afã mmienu + 1G nkaeɛ + 16G EMMC

Dwumadi nhyehyɛe: Linux dwumadie nhyehyɛe

Nneɛma a wɔkora so: Boa TF kaad a wɔkora so

Mfoninitwa afiri: Binocular, piksel ɔpepem 2.1 a etu mpɔn, 1920*1080

Mfoninitwa mfiri: 1/2.8 "Nkɔso Scan CMOS

Lens: 6mm na ɛwɔ hɔ

Ɔkasafo: gyinapɛn, nne a wɔbɔ no betumi ayɛ nea wɔpɛ

Recognition sorokɔ: 1.2 ~ 2.2 mita, anim adjustable

Recognition kwan: 0.5 ~ 1.5 mita, nsakrae gyina lens

Anim anim: digrii 30 benkum ne nifa, digrii 30 kɔ soro ne fam

Bere a wɔde hu: ennu sikani 0.5

Anim tumi: 20,000

Nneɛma a wɔkora so: 60,000 snapshot records

Switching output: 1 switching output, GPIO ports afoforo betumi ayɛ customized

Network interface: 1 RJ45 10M/100M adaptive Ethernet hyɛn gyinabea, Gigabit ntwamutam hyɛn gyinabea a wotumi sesa

Wiegand nkitahodi: 1 Wiegand ntam nkitahodi input, 1 Wiegand nkitahodi output

USB ntamgyinafo: 1 USB nkitahodi sɛ afiri

Nkitahodi nkitahodi: 1 RS485 nkitahodi

Mfoninitwa afiri: Binocular camera, hann a wotumi hu ne nea ɛbɛn infrared, boa nipadua a ɛte ase a wohu

Pixels a etu mpɔn: Pixels ɔpepem 2.1 a etu mpɔn, 1920*1080

Hann a ɛba fam koraa: kɔla 0.01Lux @F1.2 (ICR); tuntum ne fitaa 0.001Lux @F1.2 (ICR) .

Nsɛnkyerɛnne ne dede ntam nsonsonoe: ≥50db (AGC OFF) .

Wide dynamic range: 100db, ISP algorithm fã bi a ɛda adi wɔ anim

Video a wɔde kyerɛw: H.265 Main Profile encoding/H.264 BP/MP/HP encoding/MJPEG encoding

Wɛb krataafa nhyehyɛe: wɔboa

Device akyirikyiri upgrade: wɔboa

Ɔkwan a wɔfa so de di dwuma: ɛboa ɔmanfo ntam nkitahodi ne LAN a wɔde di dwuma

Adwumayɛ mu hyew: -30°C - +60℃

Adwumayɛ mu nsuo: 0 ~ 90% relative humidity, no condensation

Nkyene a wɔde petepete so dodow: Rp6 anaa nea ɛboro saa

Antistatic: nkitahodi ± 6KV, mframa ± 8KV

Tumi a wɔde ma: DC12V/2A

Nneɛma a ɛko tia basabasayɛ: IK06

Ahobanbɔ gyinabea: IP66

Mfiri ahoɔden: 14.4W (MAX)

Adwinnade kɛse: 128 (trɛw) * 28 (ne kɛse) * 240 (ɔsorokɔ) mm

Su

Boa binocular live nipadua detection

Ɛboa anim tracking ne exposure nnipa a wɔretu wɔ backlight mmeae a emu yɛ den

Unique anim recognition algorithm, hu anim pɛpɛɛpɛ, anim hu bere no nnu 0.5s

 CPU a wɔasisi wɔ fie

Sɛ wode LINUX dwumadie nhyehyɛeɛ di dwuma a, nhyehyɛeɛ no gyina hɔ pintinn

Mean mmirikatu bere ntam huammɔdi MTBF>50000h

Ɛboa nhomakorabea ahorow a wɔde anim toto ho 20,000 ne kyerɛwtohɔ ahorow a ɛkyerɛ sɛ wohu nneɛma 60,000

Rich interface protocols, a ɛboa TCP/IP, UDP, HTTP, DNS, DHCP, MQTT protocols wɔ Windows/Linux ne platforms afoforo ase · Adwumayɛ hyew: -30°C-60℃

IP66 nsuo ne mfutuma ntumi nkɔ mu

 Built-in photosensitive sensor, automatically sesa fill hann ahoɔden

Hardware nkitahodi ahorow a ɛyɛ fɛ (I/O, WG26, WG34, RJ45, RS485) .

7-inch IPS full-viewing HD display, ɛnyɛ smearing anaasɛ ɛkyɛ wɔ mfonini ahorow mu
