Afiri a wɔde hu anim

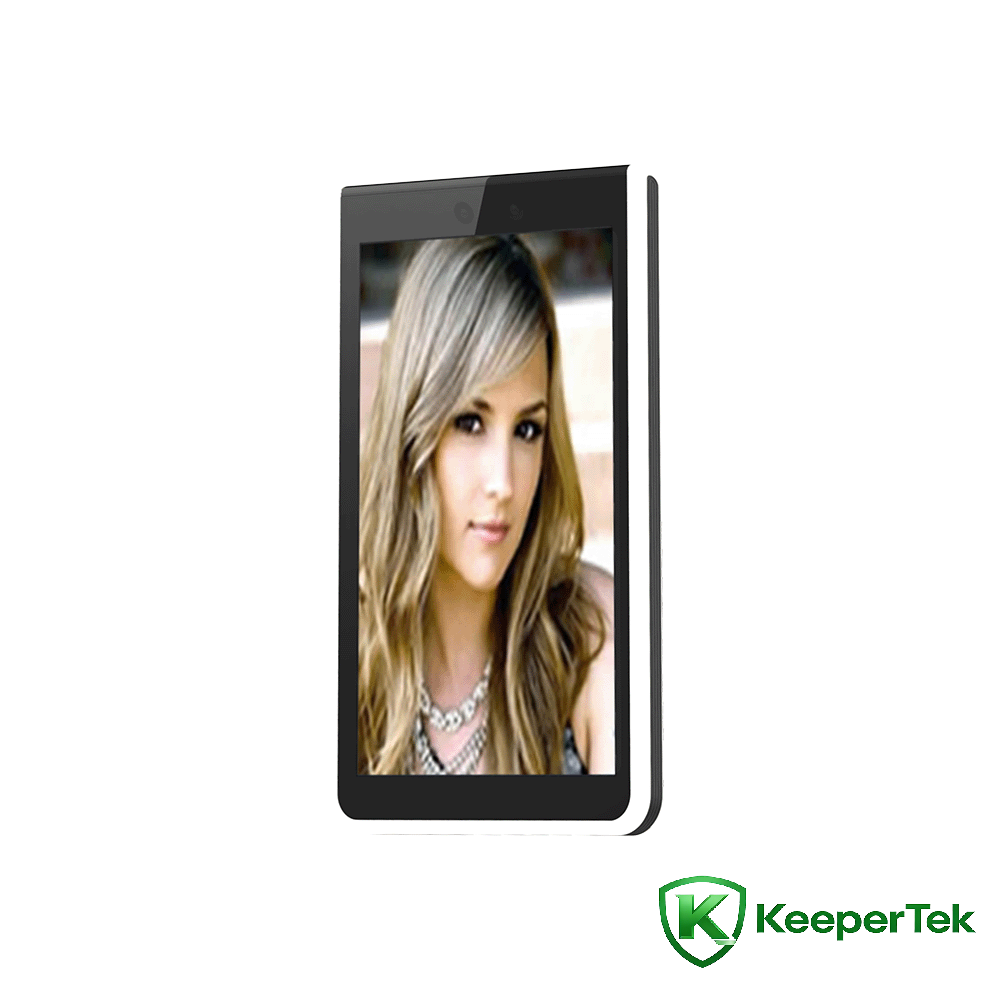

8anim a ɛyɛ nsateakwaa adida twitwi Ultra-thin card nyinaa-wɔ-ade afiri KT- FR011

Mfiridwuma mu nsusuwii ahorow

Processor: Fie YiZhi chip, abien-core processor + 1G nkaeɛ + 16G EMMC

Dwumadi nhyehyɛe: Linux dwumadie nhyehyɛe

Nneɛma a wɔkora so: Boa TF kaad akorae (wɔpɛ) .

Mfoninitwa afiri: Binocular, piksel ɔpepem 2.1 a etu mpɔn, 1920*1080

Mfoninitwa mfiri: 1/2.8 "Nkɔso Scan CMOS

Lens: 4.5mm focal tenten

WiFi module: 2.4GHz frequency band, IEEE802 b / g / n protocol； 5GHz frequency band, IEEE802 a / n / ac protocol

Kaad ahorow a wobetumi de swipe: mifare biako (M1), S50, S70, NTAG2xx ne afoforo 13.56MHz frequency band kaad, TK, EM ne afoforo series 125KHz frequency band kaad (IC/ID yɛ nea wɔboa)

Ɔkasafo: Wobetumi ayɛ nneɛma a wɔde bɔ nne no sɛnea wɔpɛ

Recognition sorokɔ: 1.2 ~ 2.3 mita, anim adjustable

Recognition kwan: 0.5 ~ 2.5 mita

Anim anim: digrii 30 benkum ne nifa, digrii 30 kɔ soro ne fam

Bere a wɔde hu: ennu sikani 0.3

Nneɛma a wɔkora so: 160,000 snapshot records

Anim tumi: 24,000

Tumi a wɔde hyɛ mu: DC12V/2A

Network interface: 1 RJ45 10M/100M adaptive Ethernet hyɛn gyinabea, Gigabit ntwamutam hyɛn gyinabea a wotumi sesa

Wiegand ntamgyinafoɔ: 1 Wiegand nkitahodiɛ afiri, 1 Wiegand ntam nkitahodiɛ a wɔde hyɛ mu

Alarm interface: 1-kwan ogya alarm input

Ɔpon sensor ntamgyinafo: 1 ɔpon sensor ntam nkitahodi input

Ɔpon ano bue interface: 1 ɔpon bue interface input

Doorbell interface: 1 ɔpon ano dɔn interface output

Ɔpon ano lock interface: 1 ɔpon lock interface output

Nkitahodi nkitahodi: 1 RS485 nkitahodi nkitahodi

USB nkitahodi: 1 USB nkitahodi

Mfoninitwa afiri: Binocular camera, ahwehwɛ nyinaa, hann a wotumi hu ne near-infrared, boa nipadua a ɛte ase a wohu

Pixels a etu mpɔn: Pixels ɔpepem 2.1 a etu mpɔn, 1920*1080

Hann a ɛba fam koraa: kɔla 0.01Lux @F1.2 (ICR); tuntum ne fitaa 0.001Lux @F1.2 (ICR) .

Nsɛnkyerɛnne ne dede ntam nsonsonoe: ≥50db (AGC OFF) .

Wide dynamic range: 120db, ISP algorithm fã bi a ɛda adi wɔ anim

Video a wɔde kyerɛw: H.265 Main Profile encoding/H.264 BP/MP/HP encoding/MJPEG encoding

Adwumayɛ mu hyew: -20°C-55℃

Adwumayɛ mu nsuo: 0 ~ 90% relative humidity, no condensation

Adwinnade ahoɔden: 20W(MAX)

Nkyene a wɔde petepete so dodow: Rp6 anaa nea ɛboro saa

Antistatic: nkitahodi ± 6KV, mframa ± 8KV

Tumi a wɔde ma: DC12V/2A

Ahobanbɔ gyinabea: IP42

Screen no ho nsɛm: 8-inch high-definition IPS screen

Adwinnade kɛse: 215.22 * 130 * 18mm

Su

Boa binocular live nipadua detection

Ɛboa anim tracking ne exposure nnipa a wɔretu wɔ backlight mmeae a emu yɛ den

Unique anim recognition algorithm, hu anim pɛpɛɛpɛ, anim hu bere no nnu 0.3s

CPU a wɔasisi wɔ fie

Sɛ wode LINUX dwumadie nhyehyɛeɛ di dwuma a, nhyehyɛeɛ no gyina hɔ pintinn

H.265 encoding format video stream no nam ONVIF protocol ne GB28181 protocol so na ɛka NVR ne mfiri afoforo a wɔde sie ho tẽẽ.

Ɛboa mpɔtam hɔ nneɛma a wɔkora so wɔ TF kaad mu, a wɔkɔ so sie mfonini ahorow afe 1 ne video ahorow ɔsram 1 anaa nea ɛboro saa (egyina tumi a TF kaad a wopɛ no tumi yɛ so)

Mean mmirikatu bere ntam huammɔdi MTBF>50000h

Ɛboa 24,000+ anim ntotoho nhomakorabea ne 160,000 a wohu kyerɛwtohɔ

Nkitahodi nhyehyɛe a ɛyɛ fɛ, a ɛboa TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, SMTP, UPNP, MQTT nhyehyɛe a ɛwɔ Windows/Linux ne nhyiam afoforo ase

Adwumayɛ mu hyew: -20°C-55℃

Boa anti-tamper alarm

Ɛboa docking nne ne video mununkum intercom

Boa touch screen anim-awiei nhyehyɛe ne nhyehyɛe

Hardware interfaces a ɛyɛ fɛ (I/O, WG26, WG34, RJ45, USB, ɔpon sensor, ɔpon ano dɔn, ɔpon a wobue, alarm, RS485)

8-inch IPS full-viewing HD display, ɛnyɛ smearing anaasɛ ɛkyɛ wɔ mfonini ahorow mu

Automatic gain ne automatic white balance ma kwan ma wɔsan de mfonini no kɔla ankasa ba wɔ abɔde mu

Built-in tuntum hann level sensor a wɔahyira so ama video surveillance, pɛpɛɛpɛ kɛse a ɛba fam-hann hu

3D dede a wɔtew so ne mframa a ɛkɔ mu ho mfiridwuma ma mfonini ahorow a wɔhwɛ so wɔ hann a ɛba fam ase no mu da hɔ na ɛkɔ akyiri

Support code stream na me frame ntamgyinafo nhyehyɛe

Boa video beae no fã bi a wosiw ano

Boa ROI encoding a wɔde yɛ adwuma

Automatic white balance, nsaano white balance wɔ hɔ

Boa maximum exposure bere nhyehyɛe

Boa nhyehyɛe a wɔde hwɛ telefon a wokura kyin so

Boa 2D dede a wɔtew so ne 3D dede a wɔtew so

Boa recording nhyehyɛe bere bere ne upload kwan nhyehyɛe

Ɛboa video a ɛhyerɛn, nsonsonoe, hue, saturation, ne gamma adjustment

Mmoa nhyehyɛe a ɛsen biara automatic exposure bere

Supports anim nyansa exposure ne anim nyansa enhancement nhyehyɛe
