Afiri a wɔde hu anim

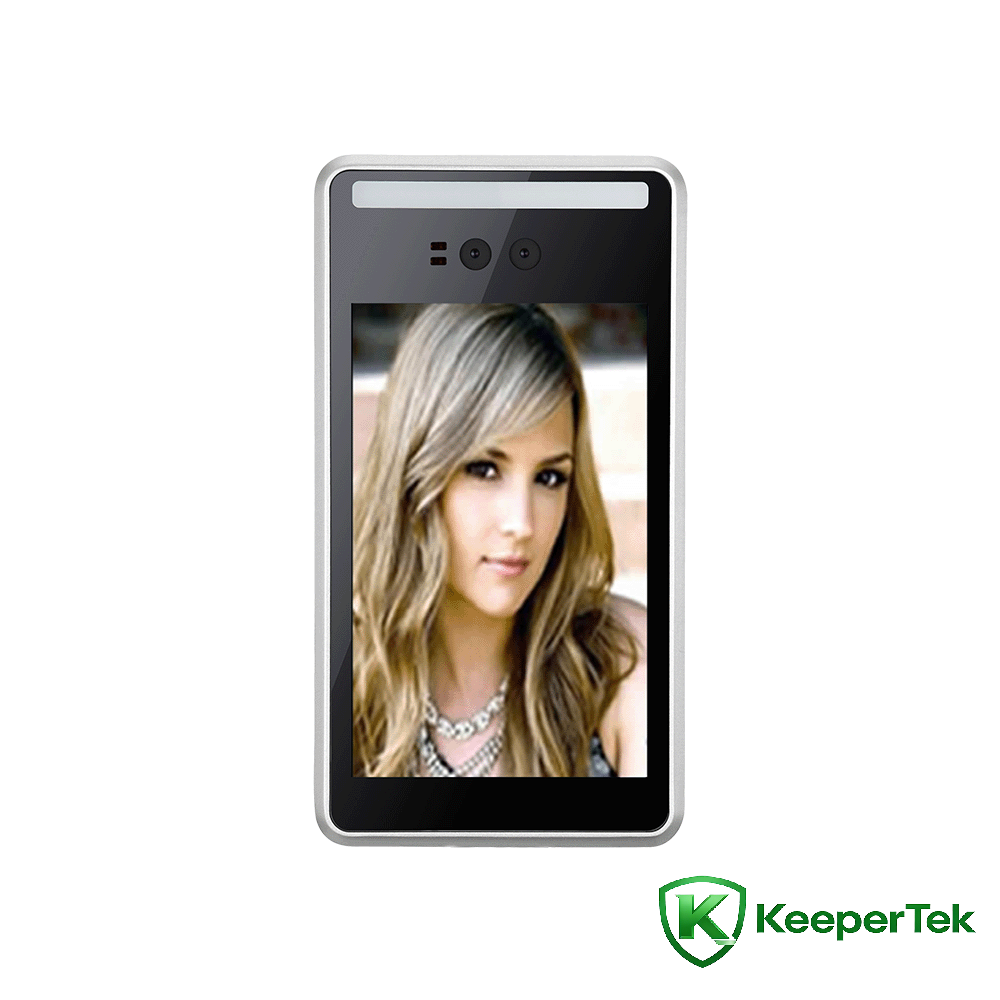

8anim a ɛyɛ nsateakwaa Recognition afiri a ɛyɛ ne nyinaa wɔ biako mu KT- FR012

Mfiridwuma mu nsusuwii ahorow

Processor: ARM Cortex-A7 a ɛwɔ afã abien

Dwumadi nhyehyɛe: Linux dwumadie nhyehyɛe a wɔde ahyɛ mu

Nneɛma a wɔkora so: 1GB RAM + 8GB eMMC

Ɔkwan a wɔfa so hwɛ: Vertical Hwɛ anim: 30°； Ɔkwan a ɛda fam a wɔde hwɛ ade: 30°

Mfoninitwa mfiri: 1/2.8 "Nkɔso Scan CMOS

Lens: 6mm na ɛwɔ hɔ

Kaad swiping module (a wopɛ): 13.56MHz, ɛboa Mifare S50, S70 kaad, ultralinght kaad, NTAG kaad, DESFire D21, D41, D81, CPU kaad a ɛnyɛ nkitahodi

4G module (a wopɛ): ɛboa LTE-FDD, LTE-TDD, DC-HSPA +, WCDMA, EDGE, GPRS ne network gyinapɛn afoforo, a ɛwɔ downlink rate a ɛsen biara a ɛyɛ 160Mbps ne uplink rate a ɛsen biara a ɛyɛ 60Mbps

Wifi module (a wopɛ): 2.4GHz frequency band, IEEE802 b/g/n protocol； 5GHz frequency band, IEEE802 a / n / ac protocol

Ɔkasafo: gyinapɛn, nne a wɔbɔ no betumi ayɛ nea wɔpɛ

Recognition sorokɔ: 1.2 ~ 2.2 mita, anim adjustable

Recognition kwan: 0.5 ~ 1.5 mita, nsakrae gyina lens

Bere a wɔde hu: ennu sikani 0.3

Nneɛma a wɔkyere gu kasɛt so: 80,000 a wɔakyere agu hama so

Anim tumi: 30,000

Screen hann: ≥400 cd/m2

Network interface: 1 RJ45 10M/100M adaptive Ethernet hyɛn gyinabea, Gigabit ntwamutam hyɛn gyinabea a wotumi sesa

Wiegand ntamgyinafoɔ: 1 Wiegand nkitahodiɛ afiri, 1 Wiegand ntam nkitahodiɛ a wɔde hyɛ mu

Ɔpon sensor ntamgyinafo: 1 kwan pon sensor nkitahodi

Ɔpon a wobue interface: 1 kwan ɔpon bue interface

Ɔpon ano lock interface: 1-kwan apon ano lock interface

Nkitahodi nkitahodi: 1 channel 485 nkitahodi nkitahodi

Mfoninitwa afiri: Binocular camera, hann a wotumi hu ne nea ɛbɛn infrared, boa nipadua a ɛte ase a wohu

Pixels a etu mpɔn: Pixels ɔpepem 2.1 a etu mpɔn, 1920*1080

Hann a ɛba fam koraa: kɔla 0.01Lux @F1.2 (ICR); tuntum ne fitaa 0.001Lux @F1.2 (ICR) .

Nsɛnkyerɛnne ne dede ntam nsonsonoe: ≥50db (AGC OFF) .

Wide dynamic range: 120db, ISP algorithm fã bi a ɛda adi wɔ anim

Video a wɔde kyerɛw: H.265 Main Profile encoding/H.264 BP/MP/HP encoding/MJPEG encoding

Adwumayɛ mu hyew: -30°C - +60℃

Adwumayɛ mu nsuo: 0 ~ 90% relative humidity, no condensation

Nkyene a wɔde petepete so dodow: Rp6 anaa nea ɛboro saa

Antistatic: nkitahodi ± 6KV, mframa ± 8KV

Tumi a wɔde ma: DC12V/2A

Nneɛma a ɛko tia basabasayɛ: IK06

Ahobanbɔ gyinabea: IP66

Adwinnade ahoɔden: 20W(MAX)

Adwinnade kɛse: 252 (tenten) * 136 (trɛw) * 26 (ne kɛse) mm

Su

Boa binocular live nipadua detection

Unique live face recognition algorithm, hu anim pɛpɛɛpɛ, anim hu bere no nnu 0.3s

Mean mmirikatu bere a ɛda huammɔdi ntam MTBF>50000H

Ɛboa anim tracking ne exposure nnipa a wɔretu wɔ backlight mmeae a emu yɛ den

Rich interface protocols, a ɛboa SDK ne HTTP protocols wɔ platform ahorow pii te sɛ Linux/Windows so

Sɛ wode Linux operating system di dwuma a, system no a ɛgyina pintinn no ye

Boa 30,000+ anim ntotoho nhomakorabea ne 80,000 a wohu kyerɛwtohɔ

Supports TF card expansion storage, mfonini betumi akora so daa afe 1, video ahorow betumi asie daa dapɛn biako anaa nea ɛboro saa

Adwumayɛ mu hyew: -30°C- +60℃

Abɔnten IP66 nsuo ne mfutuma ntumi nkɔ mu

Afiri no boa local login de hwɛ, bisa, na hyehyɛ afiri no.

Rich hardware interfaces (I / O, WG26, WG34, RJ45, ɔpon sensor, ɔpon a wobue, ɔpon ano tow, RS485)

8-inch IPS full-viewing HD display, ɛnyɛ smearing anaasɛ ɛkyɛ wɔ mfonini ahorow mu

Automatic gain ne automatic white balance ma kwan ma wɔsan de mfonini no kɔla ankasa ba wɔ abɔde mu

Built-in tuntum hann level sensor a wɔahyira so ama video surveillance, pɛpɛɛpɛ kɛse a ɛba fam-hann hu

3D dede a wɔtew so ne mframa a ɛkɔ mu ho mfiridwuma ma mfonini ahorow a wɔhwɛ so wɔ hann a ɛba fam ase no mu da hɔ na ɛkɔ akyiri

Boa video beae no fã bi a wosiw ano

Boa ROI encoding a wɔde yɛ adwuma

Automatic white balance, nsaano white balance wɔ hɔ

Boa 2D dede a wɔtew so ne 3D dede a wɔtew so

Ɛboa video a ɛhyerɛn, nsonsonoe, hue, saturation, ne gamma adjustment

Mmoa nhyehyɛe a ɛsen biara automatic exposure bere

Supports anim nyansa exposure ne anim nyansa enhancement nhyehyɛe
