Afiri a wɔde hu anim

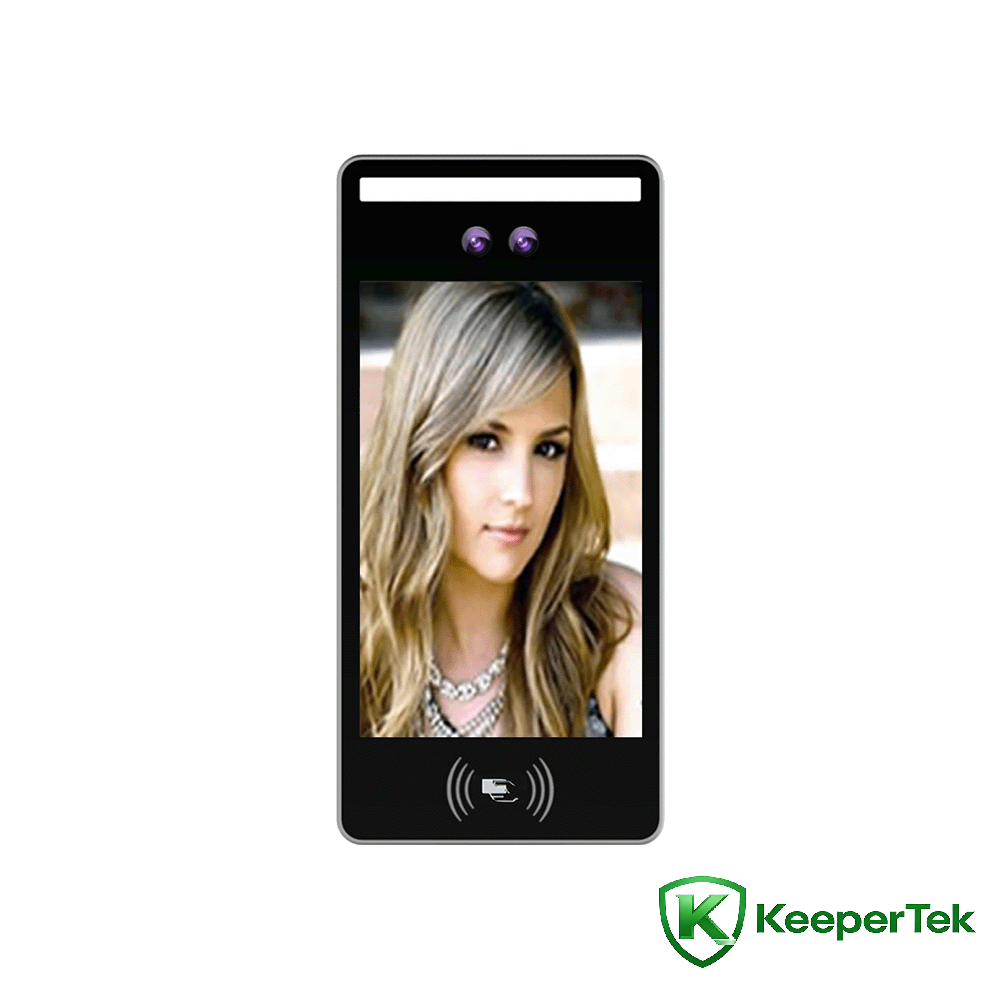

8anim a ɛyɛ nsateakwaa adida Swipe kaad no Afiri a ɛyɛ ne nyinaa wɔ biako mu KT- FR013

Mfiridwuma mu nsusuwii ahorow

Processor: ARM Cortex-A7 a ɛwɔ afã abien

Dwumadi nhyehyɛe: Linux dwumadie nhyehyɛe

Nneɛma a wɔkora so: Boa TF kaad a wɔkora so

Mfoninitwa afiri: Binocular, piksel ɔpepem 2.1 a etu mpɔn, 1920*1080

Mfoninitwa mfiri: 1/2.8 "Nkɔso Scan CMOS

Lens: 6mm na ɛwɔ hɔ

Card swiping module: optional, ɛboa akenkan Type-A ne Type-B cards a ISO/IEC14443 protocol, boa ID card UID ne ID card soronko identification code

Ɔkasafo: gyinapɛn, nne a wɔbɔ no betumi ayɛ nea wɔpɛ

Recognition sorokɔ: 1.2 ~ 2.2 mita, anim adjustable

Recognition kwan: 0.5 ~ 1.5 mita, nsakrae gyina lens

Anim anim: digrii 30 benkum ne nifa, digrii 30 kɔ soro ne fam

Bere a wɔde hu: ennu sikani 0.3

Nneɛma a wɔkora so: 80,000 snapshot records

Anim tumi: 30,000

Kaad ahorow a wobetumi de swiped: 13.56MHz, boa Mifare S50, S70 kaad, ultralinght kaad, NTAG kaad, DESFire D21, D41, D81, CPU kaad a ɛnyɛ nkitahodi

Switching output: 1 switching output, GPIO ports afoforo betumi ayɛ customized

USB ntamgyinafo: 1 USB nkitahodi sɛ afiri

Network interface: 1 RJ45 10M/100M adaptive Ethernet hyɛn gyinabea, Gigabit ntwamutam hyɛn gyinabea a wotumi sesa

Wiegand ntamgyinafoɔ: 1 Wiegand nkitahodiɛ afiri, 1 Wiegand ntam nkitahodiɛ a wɔde hyɛ mu

Nkitahodi nkitahodi: 1 RS485 nkitahodi

Mfoninitwa afiri: Binocular camera, hann a wotumi hu ne nea ɛbɛn infrared, boa nipadua a ɛte ase a wohu

Pixels a etu mpɔn: Pixels ɔpepem 2.1 a etu mpɔn, 1920*1080

Hann a ɛba fam koraa: kɔla 0.01Lux @F1.2 (ICR); tuntum ne fitaa 0.001Lux @F1.2 (ICR) .

Nsɛnkyerɛnne ne dede ntam nsonsonoe: ≥50db (AGC OFF) .

Wide dynamic range: 120db, ISP algorithm fã bi a ɛda adi wɔ anim

Video a wɔde kyerɛw: H.265 Main Profile encoding/H.264 BP/MP/HP encoding/MJPEG encoding

Adwumayɛ mu hyew: -30°C - +60℃

Adwumayɛ mu nsuo: 0 ~ 90% relative humidity, no condensation

Adwinnade ahoɔden: 20W(MAX)

Nkyene a wɔde petepete so dodow: Rp6 anaa nea ɛboro saa

Antistatic: nkitahodi ± 6KV, mframa ± 8KV

Tumi a wɔde ma: DC12V/2A

Nneɛma a ɛko tia basabasayɛ: IK06

Ahobanbɔ gyinabea: IP66

Screen no ho nsɛm: 8-inch high-definition IPS screen

Adwinnade kɛse: 265 (tenten) * 126 (trɛw) * 26 (ne kɛse) mm

Su

Boa binocular live nipadua detection

Ɛboa anim tracking ne exposure nnipa a wɔretu wɔ backlight mmeae a emu yɛ den

Unique anim recognition algorithm, hu anim pɛpɛɛpɛ, anim hu bere no nnu 0.3s

Sɛ wode LINUX dwumadie nhyehyɛeɛ di dwuma a, nhyehyɛeɛ no gyina hɔ pintinn

H.265 encoding format video stream no nam ONVIF protocol ne GB28181 protocol so na ɛka NVR ne mfiri afoforo a wɔde sie ho tẽẽ.

Ɛboa mpɔtam hɔ nneɛma a wɔkora so wɔ TF kaad mu, a wɔkɔ so sie mfonini ahorow afe 1 ne video ahorow ɔsram 1 anaa nea ɛboro saa (egyina tumi a TF kaad a wopɛ no tumi yɛ so)

Mean mmirikatu bere ntam huammɔdi MTBF>50000h

Boa 30,000+ anim ntotoho nhomakorabea ne 80,000 a wohu kyerɛwtohɔ

Nkitahodi nhyehyɛe a ɛyɛ fɛ, a ɛboa TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, SMTP, UPNP, MQTT nhyehyɛe a ɛwɔ Windows/Linux ne nhyiam afoforo ase

Adwumayɛ mu hyew: -30°C-60℃

IP66 nsuo ne mfutuma ntumi nkɔ mu

Boa QR code akenkan adwuma

Hardware nkitahodi ahorow a ɛyɛ fɛ (I/O, WG26, WG34, RJ45, USB, RS485) .

8-inch IPS full-viewing HD display, ɛnyɛ smearing anaasɛ ɛkyɛ wɔ mfonini ahorow mu

Automatic gain ne automatic white balance ma kwan ma wɔsan de mfonini no kɔla ankasa ba wɔ abɔde mu

Built-in tuntum hann level sensor a wɔahyira so ama video surveillance, pɛpɛɛpɛ kɛse a ɛba fam-hann hu

3D dede a wɔtew so ne mframa a ɛkɔ mu ho mfiridwuma ma mfonini ahorow a wɔhwɛ so wɔ hann a ɛba fam ase no mu da hɔ na ɛkɔ akyiri

Boa video beae no fã bi a wosiw ano

Boa ROI encoding a wɔde yɛ adwuma

Automatic white balance, nsaano white balance wɔ hɔ

Boa 2D dede a wɔtew so ne 3D dede a wɔtew so

Ɛboa video a ɛhyerɛn, nsonsonoe, hue, saturation, ne gamma adjustment

Mmoa nhyehyɛe a ɛsen biara automatic exposure bere

Supports anim nyansa exposure ne anim nyansa enhancement nhyehyɛe
