Afiri a wɔde hu anim

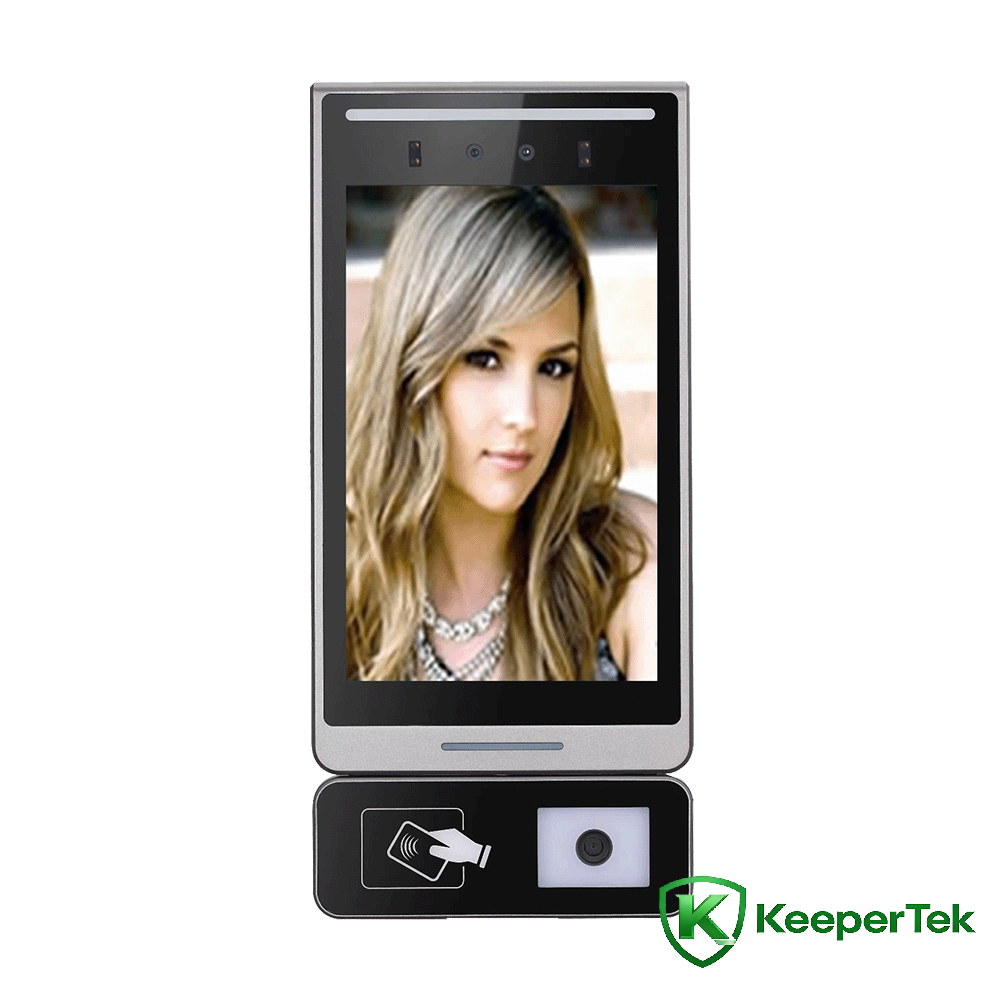

8Onipa a ne ho yɛ nsateakwaa Anim adida a ɛwɔ afã abien Ne nyinaa-wɔ-biako code swiping afiri KT- FR015

Mfiridwuma mu nsusuwii ahorow

Processor: ARM Cortex-A7 ne RISC-V MCU a ɛwɔ afã abien

Dwumadi nhyehyɛe: Linux dwumadie nhyehyɛe

Nneɛma a wɔkora so: 1GB RAM + 8GB eMMC

Mfoninitwa afiri: Binocular, piksel ɔpepem 2.1 a etu mpɔn, 1920*1080

Mfoninitwa mfiri: 1/2.8 "Nkɔso Scan CMOS

Lens: 4.5mm focal tenten

Kaad swiping module: mifare biako (M1), S50, S70, NTAG2xx ne afoforo 13.56MHz frequency band kaad, TK, EM ne afoforo series 125KHz frequency band kaad (a IC / ID boa)

QR code module: 640 (a ɛkɔ soro) .

Ɔkasafo: Wobetumi ayɛ nneɛma a wɔde bɔ nne no sɛnea wɔpɛ

Recognition sorokɔ: 1.2 ~ 2.3 mita, anim adjustable

Recognition kwan: 0.5 ~ 1.5 mita, nsakrae gyina lens

Anim anim: digrii 30 benkum ne nifa, digrii 30 kɔ soro ne fam

Bere a wɔde hu: ennu sikani 0.3

Nkyerɛkyerɛmu kyerɛwtohɔ tumi: 69000

Anim tumi: 24000

Tumi a wɔde hyɛ mu: DC12V/2A

Netwɛk ntam nkitahodi: 1 RJ45 10M/100M adaptive Ethernet hyɛn gyinabea

Wiegand ntamgyinafoɔ: 1 Wiegand nkitahodiɛ afiri, 1 Wiegand ntam nkitahodiɛ a wɔde hyɛ mu

Nsakraeɛ boɔ: 1 nsakraeɛ boɔ a ɛfiri mu ba

Nkitahodi nkitahodi: 1 RS485 nkitahodi nkitahodi

USB nkitahodi: 1 USB nkitahodi

Camera: binocular camera, customized lens, hann a wotumi hu ne near-infrared, boa nipadua a ɛte ase a wohu

Pixels a etu mpɔn: Pixels ɔpepem 2.1 a etu mpɔn, 1920*1080

Nsɛnkyerɛnne ne dede ntam nsonsonoe: ≥50db (AGC OFF) .

Wide dynamic range: 120db, ISP algorithm fã bi a ɛda adi wɔ anim

Video a wɔde kyerɛw: H.265 Main Profile encoding/H.264 BP/MP/HP encoding/MJPEG encoding

Adwumayɛ mu hyew: -20°C-60℃

Adwumayɛ mu nsuo: 0 ~ 90% relative humidity, no condensation

Adwinnade ahoɔden: 20W(MAX)

Nkyene a wɔde petepete so dodow: Rp6 dodow

ESD: nkitahodi ± 6KV, mframa ± 8KV

Tumi a wɔde ma: DC12V/2A

Ahobanbɔ gyinabea: IP66

Screen nkyerɛkyerɛmu: 8-inch high-definition IPS screen, nsusuwii 1280 * 800

Adwinnade no kɛse: 295.76 (ne tenten) * 140.2 (ne tɛtrɛtɛ) * 24 (ne kɛse) mm

Su

Boa binocular live nipadua detection

Ɛboa anim tracking ne exposure nnipa a wɔretu wɔ backlight mmeae a emu yɛ den

Unique anim recognition algorithm, hu anim pɛpɛɛpɛ, anim hu bere no nnu 0.3s

CPU a wɔasisi wɔ fie

Sɛ wode LINUX dwumadie nhyehyɛeɛ di dwuma a, nhyehyɛeɛ no gyina hɔ pintinn

Mean mmirikatu bere ntam huammɔdi MTBF>50000h

Ɛboa nhomakorabea ahorow a wɔde anim toto ho a ɛkɔ soro kodu 24,000 ne kyerɛwtohɔ ahorow a ɛkyerɛ sɛ wogye tom 69,000

Nkitahodi nhyehyɛe a ɛyɛ fɛ, a ɛboa TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, SMTP, UPNP, MQTT nhyehyɛe a ɛwɔ Windows/Linux ne nhyiam afoforo ase

Adwumayɛ mu hyew: -20°C-60℃

Ultra-thin nipadua, mfiridwuma nhyehyɛe a ɛyɛ fɛ

Hardware nkitahodi ahorow a ɛyɛ fɛ (I/O, USB2.0, WG26, WG34, RJ45, RS485) .

8-inch IPS full-viewing HD display, ɛnyɛ smearing anaasɛ ɛkyɛ wɔ mfonini ahorow mu

Automatic gain ne automatic white balance ma kwan ma wɔsan de mfonini no kɔla ankasa ba wɔ abɔde mu

3D dede a wɔtew so ne mframa a ɛkɔ mu ho mfiridwuma ma mfonini ahorow a wɔhwɛ so wɔ hann a ɛba fam ase no mu da hɔ na ɛkɔ akyiri

Boa video beae no fã bi a wosiw ano

Boa ROI encoding a wɔde yɛ adwuma

Automatic white balance, nsaano white balance wɔ hɔ

Boa 2D dede a wɔtew so ne 3D dede a wɔtew so

Ɛboa video a ɛhyerɛn, nsonsonoe, hue, saturation, ne gamma adjustment
