Afiri a wɔde hu anim

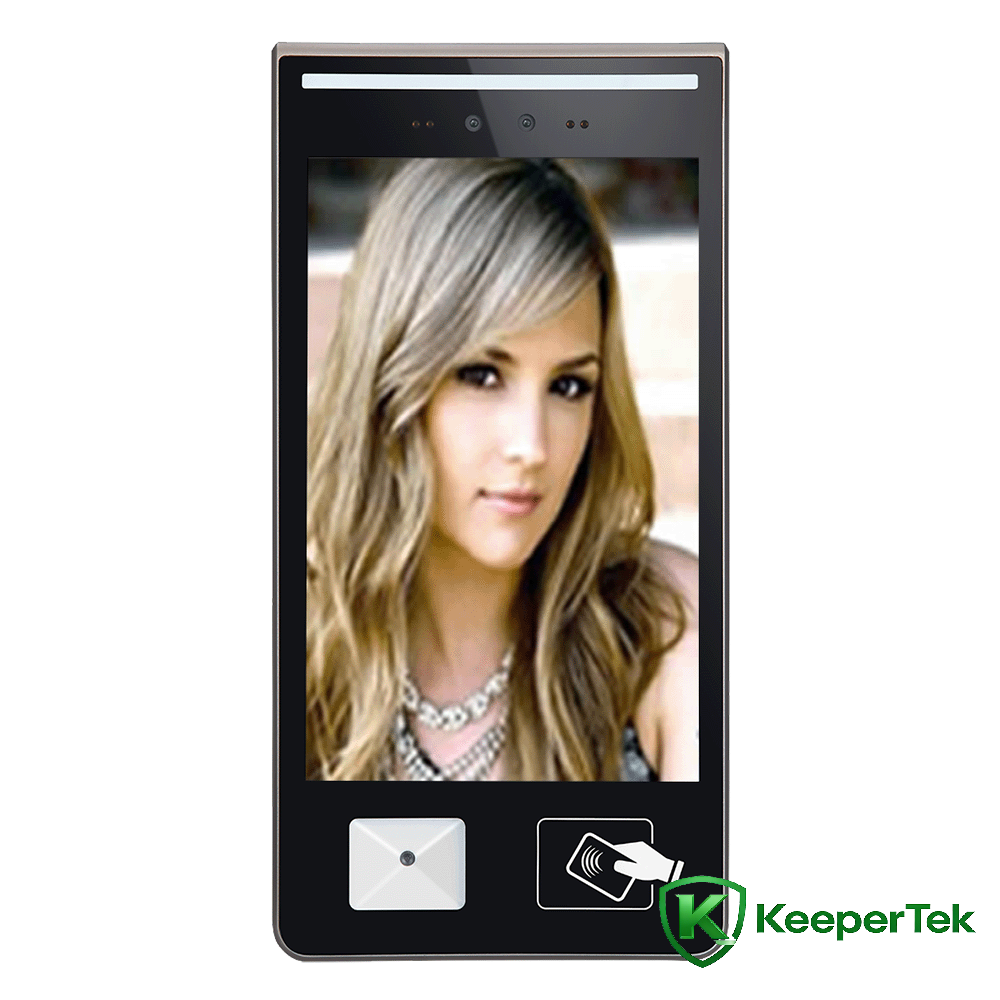

10.1Onipa a ne ho yɛ nsateakwaa Anim adida a ɛwɔ afã abien All-in-one code swiping ne kaad dawurubɔ afiri KT- FR016

Mfiridwuma mu nsusuwii ahorow

Processor: Ofie dual-core processor + 1G nkaeɛ + 8G EMMC

Dwumadi nhyehyɛe: Linux dwumadie nhyehyɛe

Nneɛma a wɔkora so: Boa TF kaad akorae (wɔpɛ) .

Mfoninitwa afiri: Binocular, piksel ɔpepem 2.1 a etu mpɔn, 1920*1080

Mfoninitwa mfiri: 1/2.8 "Nkɔso Scan CMOS

Lens: 4.5mm focal tenten

Kaad swiping module: mifare biako (M1), S50, S70, NTAG2xx ne afoforo 13.56MHz frequency band kaad, TK, EM ne afoforo series 125KHz frequency band kaad (a IC / ID boa)

QR koodu akenkan module: boa QR Code, PDF417, ECC200, EAN13, Code128 ne QR koodu afoforo ne koodu a ɛwɔ afã biako

Touch screen module: capacitive pii a wɔde ka screen

Ɔkasafo: Wobetumi ayɛ nneɛma a wɔde bɔ nne no sɛnea wɔpɛ

Recognition sorokɔ: 1.2 ~ 2.3 mita, anim adjustable

Recognition kwan: 0.5 ~ 2.5 mita

Anim anim: digrii 30 benkum ne nifa, digrii 30 kɔ soro ne fam

Bere a wɔde hu: ennu sikani 0.5

Nneɛma a wɔkora so: 80,000 snapshot records

Anim tumi: 30,000

Tumi a wɔde hyɛ mu: DC12V/3A

Network interface: 1 RJ45 10M/100M adaptive Ethernet hyɛn gyinabea, Gigabit ntwamutam hyɛn gyinabea a wotumi sesa

Wiegand ntamgyinafoɔ: 1 Wiegand nkitahodiɛ afiri, 1 Wiegand ntam nkitahodiɛ a wɔde hyɛ mu

Ɔpon sensor ntamgyinafo: 1 ɔpon sensor ntam nkitahodi input

Ɔpon ano bue interface: 1 ɔpon bue interface input

GPIO nkitahodi: 1 GPIO nkitahodi a wotumi hyehyɛ

Ɔpon ano lock interface: 1 ɔpon lock interface output

Nkitahodi nkitahodi: 1 RS485 nkitahodi nkitahodi

Mfoninitwa afiri: Binocular camera, ahwehwɛ nyinaa, hann a wotumi hu ne near-infrared, boa nipadua a ɛte ase a wohu

Pixels a etu mpɔn: Pixels ɔpepem 2.1 a etu mpɔn, 1920*1080

Hann a ɛba fam koraa: kɔla 0.01Lux @F1.2 (ICR); tuntum ne fitaa 0.001Lux @F1.2 (ICR) .

Nsɛnkyerɛnne ne dede ntam nsonsonoe: ≥50db (AGC OFF) .

Wide dynamic range: 120db, ISP algorithm fã bi a ɛda adi wɔ anim

Video a wɔde kyerɛw: H.265 Main Profile encoding/H.264 BP/MP/HP encoding/MJPEG encoding

Adwumayɛ mu hyew: -30°C-70℃

Adwumayɛ mu nsuo: 0 ~ 90% relative humidity, no condensation

Adwinnade ahoɔden: 20W(MAX)

Nkyene a wɔde petepete so dodow: Rp6 anaa nea ɛboro saa

Antistatic: nkitahodi ± 6KV, mframa ± 8KV

Tumi a wɔde ma: DC12V/2A

Ahobanbɔ gyinabea: IP66

Screen no ho nsɛm: 10.1-inch high-definition IPS screen

Adwinnade kɛse: 319 * 157 * 25.2mm

Su

Boa binocular live nipadua detection

Ɛboa anim tracking ne exposure nnipa a wɔretu wɔ backlight mmeae a emu yɛ den

Unique anim recognition algorithm, hu anim pɛpɛɛpɛ, anim hu bere no nnu 0.5s

Ɛboa ɔhyew susuw module a wɔatrɛw mu de susuw nipadua hyew wɔ akyirikyiri na ama ɔhyew a ɛkorɔn alarm, na ɛboa ɔhyew data interface protocol docking

Sɛ wode LINUX dwumadie nhyehyɛeɛ di dwuma a, nhyehyɛeɛ no gyina hɔ pintinn

H.265 encoding format video stream no nam ONVIF protocol ne GB28181 protocol so na ɛka NVR ne mfiri afoforo a wɔde sie ho tẽẽ.

Ɛboa mpɔtam hɔ nneɛma a wɔkora so wɔ TF kaad mu, a wɔkɔ so sie mfonini ahorow afe 1 ne video ahorow ɔsram 1 anaa nea ɛboro saa (egyina tumi a TF kaad a wopɛ no tumi yɛ so)

Mean mmirikatu bere ntam huammɔdi MTBF>50000h

Boa 30,000+ anim ntotoho nhomakorabea ne 80,000 a wohu kyerɛwtohɔ

Nkitahodi nhyehyɛe a ɛyɛ fɛ, a ɛboa TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, SMTP, UPNP, MQTT nhyehyɛe a ɛwɔ Windows/Linux ne nhyiam afoforo ase

Adwumayɛ mu hyew: -30°C-70℃

Boa anti-tamper alarm

Boa video mununkum intercom

QR code akenkanfo a wɔde ahyɛ mu

IC card akenkanfo a wɔde ahyɛ mu

Boa microphone input audio ne akasam output ɔdio

Hardware interfaces a ɛyɛ fɛ (I/O, WG26, WG34, RJ45, ɔpon sensor, ɔpon a wobue, RS485)

10.1-inch IPS capacitive touch screen, mfonini biara smear anaasɛ ɛkyɛ

Automatic gain ne automatic white balance ma kwan ma wɔsan de mfonini no kɔla ankasa ba wɔ abɔde mu

Built-in tuntum hann level sensor a wɔahyira so ama video surveillance, pɛpɛɛpɛ kɛse a ɛba fam-hann hu

3D dede a wɔtew so ne mframa a ɛkɔ mu ho mfiridwuma ma mfonini ahorow a wɔhwɛ so wɔ hann a ɛba fam ase no mu da hɔ na ɛkɔ akyiri

Boa video beae no fã bi a wosiw ano

Automatic white balance, nsaano white balance wɔ hɔ

Boa maximum exposure bere nhyehyɛe

Boa nhyehyɛe a wɔde hwɛ telefon a wokura kyin so

Boa 2D dede a wɔtew so ne 3D dede a wɔtew so

Boa recording nhyehyɛe bere bere ne upload kwan nhyehyɛe

Ɛboa video a ɛhyerɛn, nsonsonoe, hue, saturation, ne gamma adjustment

Mmoa nhyehyɛe a ɛsen biara automatic exposure bere

Supports anim nyansa exposure ne anim nyansa enhancement nhyehyɛe
