Adum a wɔma so a wɔko tia basabasayɛ

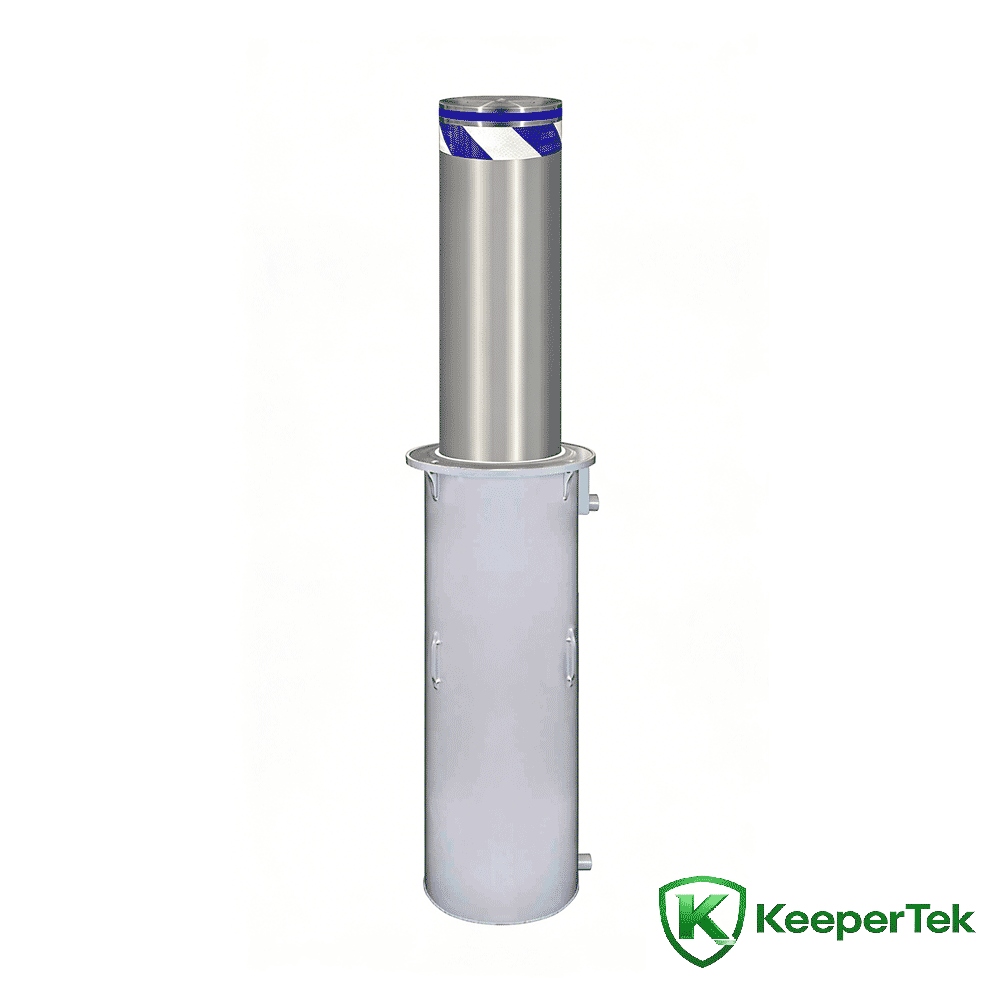

Nsuo a ɛma nneɛma so adum a ɛyɛ adwuma koraa KT-DX02

Mfiridwuma mu nsusuwii ahorow

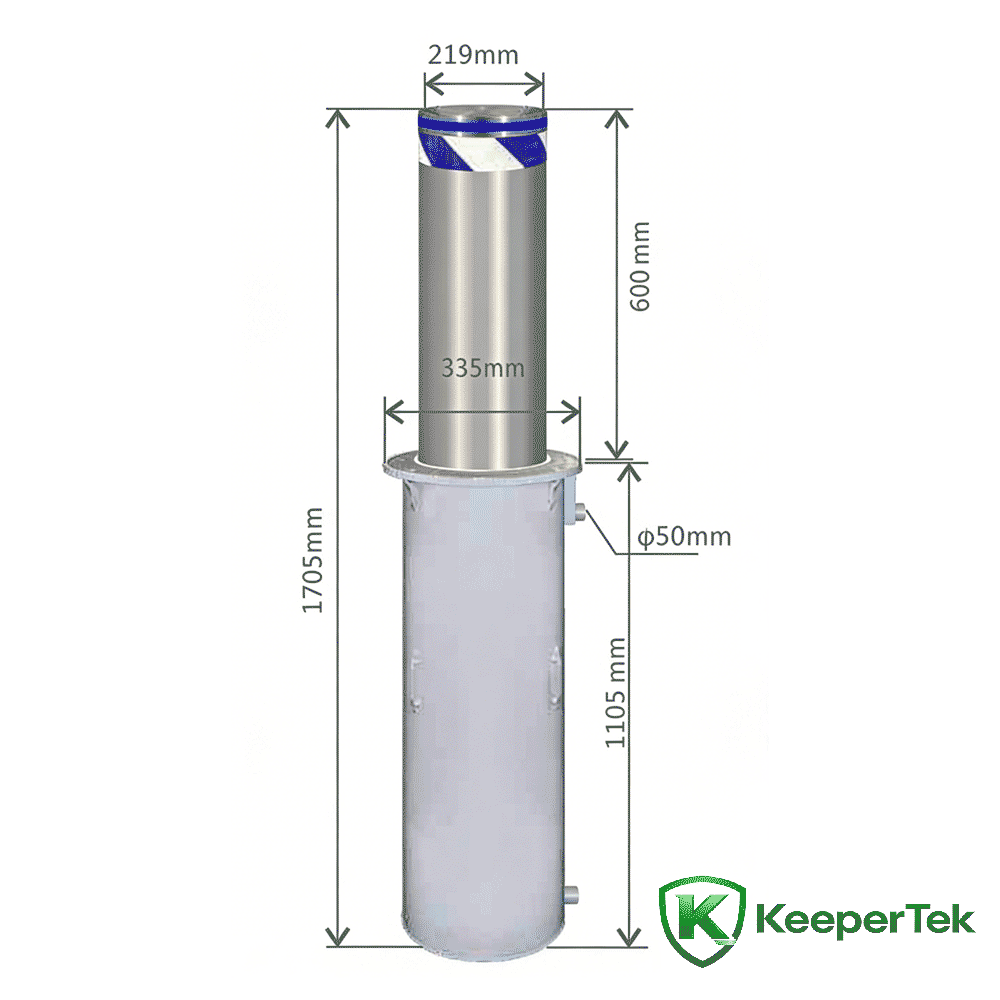

Cylinder no kɛse: 219mm

Cylinder no sorokɔ: 600mm

Cylinder no kɛse: 6mm

Cylinder nneɛma: 304 dade a ɛnyɛ den

Ahoɔhare a wɔde ma so: 2S ~ 4S

Bokiti a wɔde ahyɛ mu no ho nkyerɛkyerɛmu: 335mmx335mmx1105mm

Nsuo ntumi nkɔ mu grade: IP68

Adwumayɛ mu hyew: -35 ° C ~ 75 ° C

Flange nkyerɛkyerɛmu: flange ntwemu 335mm x ne kɛse 6mm

Nneɛma a wɔde ma: 220V

Tumi: 350W

Kɔkɔbɔ nsɛnkyerɛnne: ultra-high brightness reflective film, LED akanea

Emergency function: Wɔde EPS ntɛmpɛ ahoɔden a wɔde ma ne button biako a wɔde sian ahyɛ mu

Ɔkwan a wɔfa so di so: control box/wireless akyirikyiri control

Dwumadi ahorow a wɔatrɛw mu: tumi krataa krataa a wohu/ogya alarm/akwan a wɔfa so di dwuma nhyehyɛe nkitahodi

Akwankyerɛ adum dodow: 3

Su

Wobetumi de adi dwuma sɛnea ɛsɛ bere a wɔatumi agyina kar a emu duru yɛ tɔn 100 ano akyi.；

Nsuo ntumi nkɔ mu grade IP68, ɛda so ara tumi de di dwuma sɛnea ɛsɛ mpo bere a wɔde ahyɛ nsu mu akyi:

Ɔdan no yɛ den na ɛyɛ den. Wɔde carbon dade a ne kɛse yɛ 4mm na ɛyɛ cable outlet ne drain outlet. Wɔayɛ akyi toa no ne 4 welded bars.；

Sɛ wode 5CM hyerɛnn reflective film di dwuma a, reflectivity no boro 90%;

Optional high-brightness LED kɔkɔbɔ kanea bar betumi ama anadwo kɔkɔbɔ nkɛntɛnso no ayɛ kɛse yiye.

Panel flange no gye anti-slip nhwɛso nhyehyɛe, na flange no kɛse yɛ optional 10mm / 6mm;

Flange thickness wɔ soro adum no yɛ 10mm / 6mm, na non-standard mmoa no gye tom ma customization. Wobetumi ayɛ adum a wɔma so no kɛse, ne kɛse, ne sorokɔ, sɛnea ɛte, ahoɔhare, ne nea ɛkeka ho;

Wobetumi de nnwinnade afoforo te sɛ tumi krataa a wɔde hu nneɛma so, akwanside apon, akwan a wɔfa so kɔ mu, infrared, radar, asase so nkate, kar akanea, asorɔkye akwan, ogya kɔkɔbɔ nhyehyɛe, ne nea ɛkeka ho adi so ahwɛ so.；

Wɔboa cloud platform management system no ma ɛhwɛ lifting column no so, na wobetumi de mobile APP no adi dwuma de akyirikyiri ahwɛ lifting column no sɔre ne asehwe so.

Nsiesiei a wɔpaw

Ɔsorokɔ: ɔsorokɔ 400mm, ɔsorokɔ 800mm, ɔsorokɔ 1000mm, ɔsorokɔ 1200mm, sorokɔ 1500mm

Ne kɛse: 8mm kɛse, 10mm kɛse, 12mm kɛse, 16mm kɛse, 20mm kɛse

Diameter: 168mm ntwemu, 273mm ntwemu, 325mm ntwemu, afoforo
