Adum a wɔma so a wɔko tia basabasayɛ

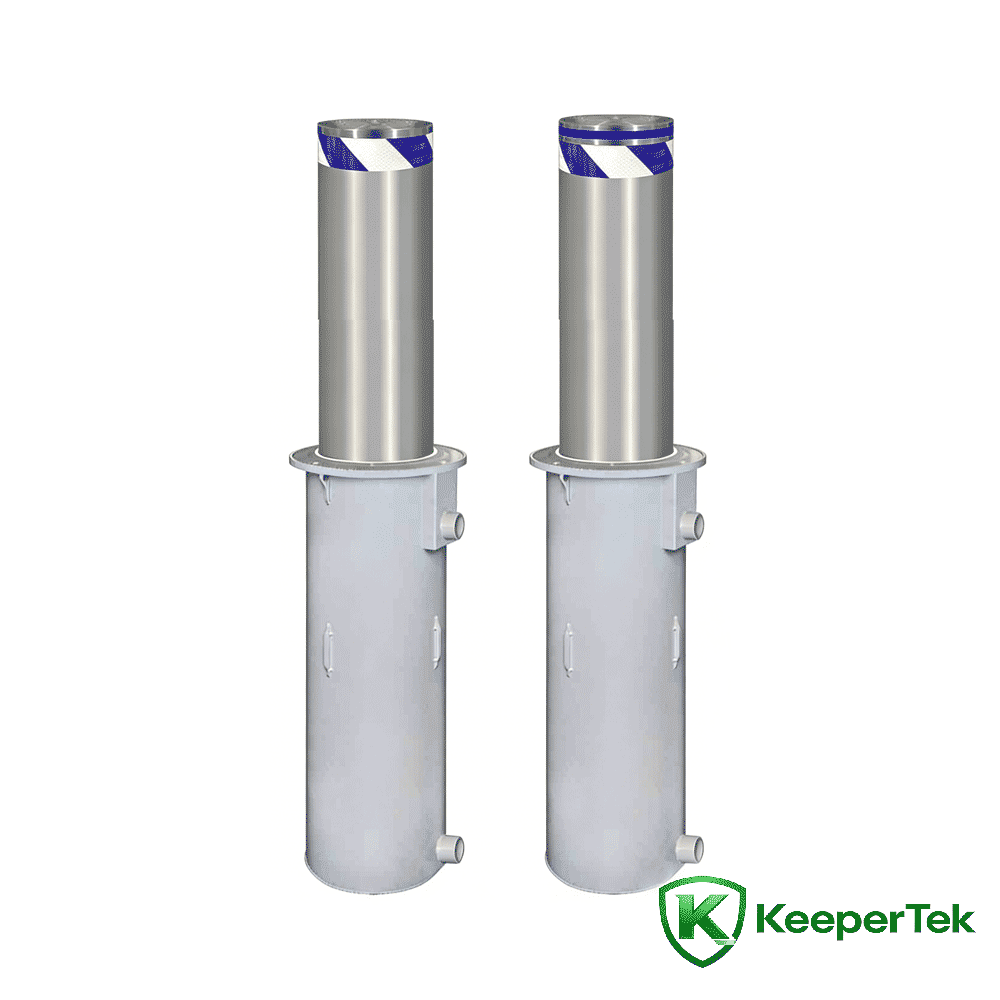

Semi-automatic a ɛma nneɛma so adum KT-DX03

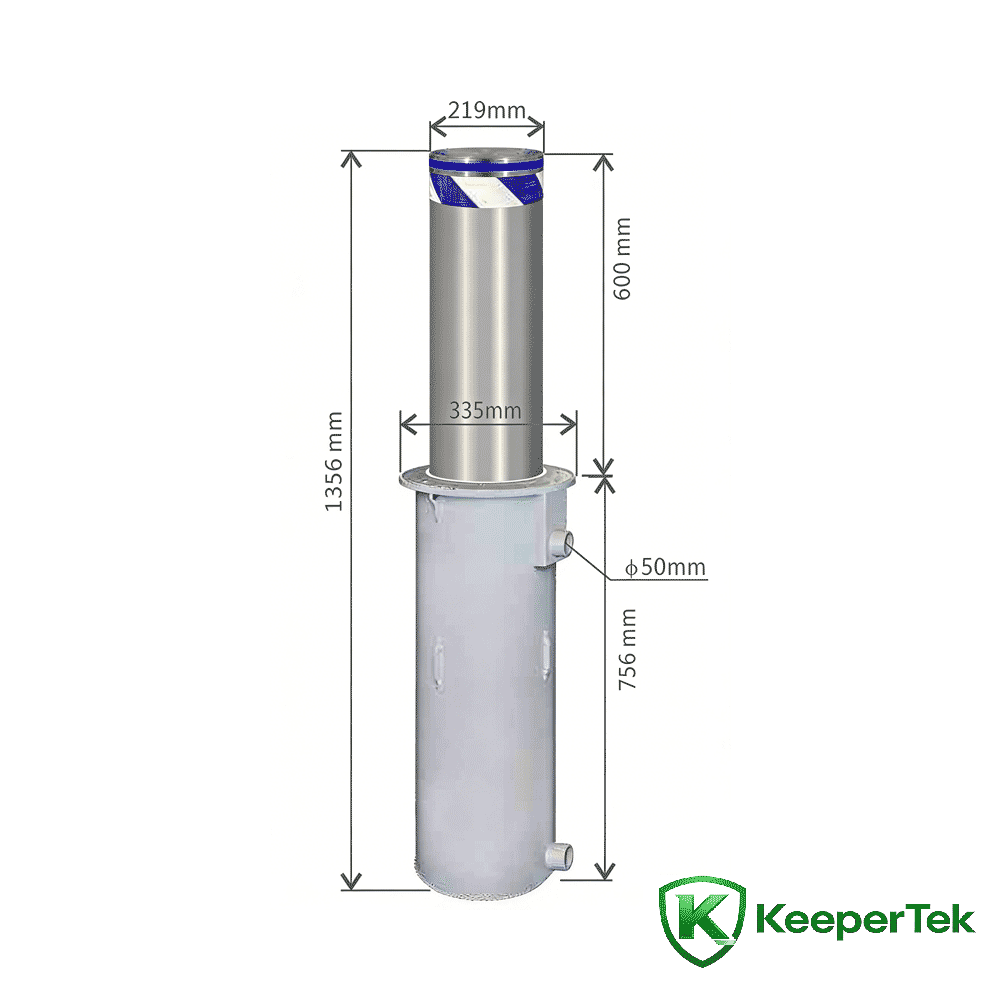

Mfiridwuma mu nsusuwii ahorow

Cylinder no kɛse: 219mm

Cylinder no sorokɔ: 600mm

Cylinder no kɛse: 6mm

Cylinder nneɛma: 304 dade a ɛnyɛ den

Bokiti a wɔde ahyɛ mu no ho nkyerɛkyerɛmu: 335mmx335mmx756mm

Nsuo ntumi nkɔ mu grade: IP68

Adwumayɛ mu hyew: -35°C～75℃

Flange nkyerɛkyerɛmu: flange ntwemu 335mm x ne kɛse 6mm

Kɔkɔbɔ nsɛnkyerɛnne: ultra-high brightness reflective film, LED akanea

Akwankyerɛ post ahorow dodow: 3

Su

Wobetumi de adi dwuma sɛnea ɛsɛ bere a kar a ɛde tɔn 8 abɔ no akyi;

Wobetumi de adi dwuma sɛnea ɛsɛ bere a wɔatumi agyina kar a emu duru yɛ tɔn 100 ano akyi.；

Nsuo ntumi nkɔ mu grade IP68, ɛda so ara tumi de di dwuma sɛnea ɛsɛ mpo bere a wɔde ahyɛ nsu mu akyi:

Ɔdan no yɛ den na ɛyɛ den. Wɔde carbon dade a ne kɛse yɛ 4mm na ɛyɛ cable outlet ne drain outlet. Wɔayɛ akyi toa no ne 4 welded bars.； ；

Sɛ wɔde 5CM trɛw reflective film di dwuma a, reflectivity no betumi adu bɛboro 90%;

Optional high-brightness LED kɔkɔbɔ kanea bar betumi ama anadwo kɔkɔbɔ nkɛntɛnso no ayɛ kɛse yiye.

Panel flange no gye anti-slip nhwɛso nhyehyɛe, na flange no kɛse yɛ optional 10mm / 6mm;

Flange no mu duru a ɛwɔ adum no atifi yɛ 10mm/6mm;

Wogye customization a ɛnyɛ gyinapɛn tom. Wobetumi ayɛ adum a wɔma so no nyinaa kɛse, ne kɛse, ne sorokɔ, sɛnea ɛte, ahoɔhare, ne nea ɛkeka ho no sɛnea wɔpɛ.

Nsiesiei ahorow a wobetumi apaw

Ɔsorokɔ: ɔsorokɔ 400mm, ɔsorokɔ 800mm, ɔsorokɔ 1000mm, ɔsorokɔ 1200mm, sorokɔ 1500mm

Ne kɛse: 8mm kɛse, 10mm kɛse, 12mm kɛse, 16mm kɛse, 20mm kɛse

Diameter: 168mm ntwemu, 273mm ntwemu, 325mm ntwemu, afoforo
