Adum a wɔma so a wɔko tia basabasayɛ

Wɔasiesie kar dua a ɛko tia basabasayɛ KT-DX07

Mfiridwuma mu nsusuwii ahorow

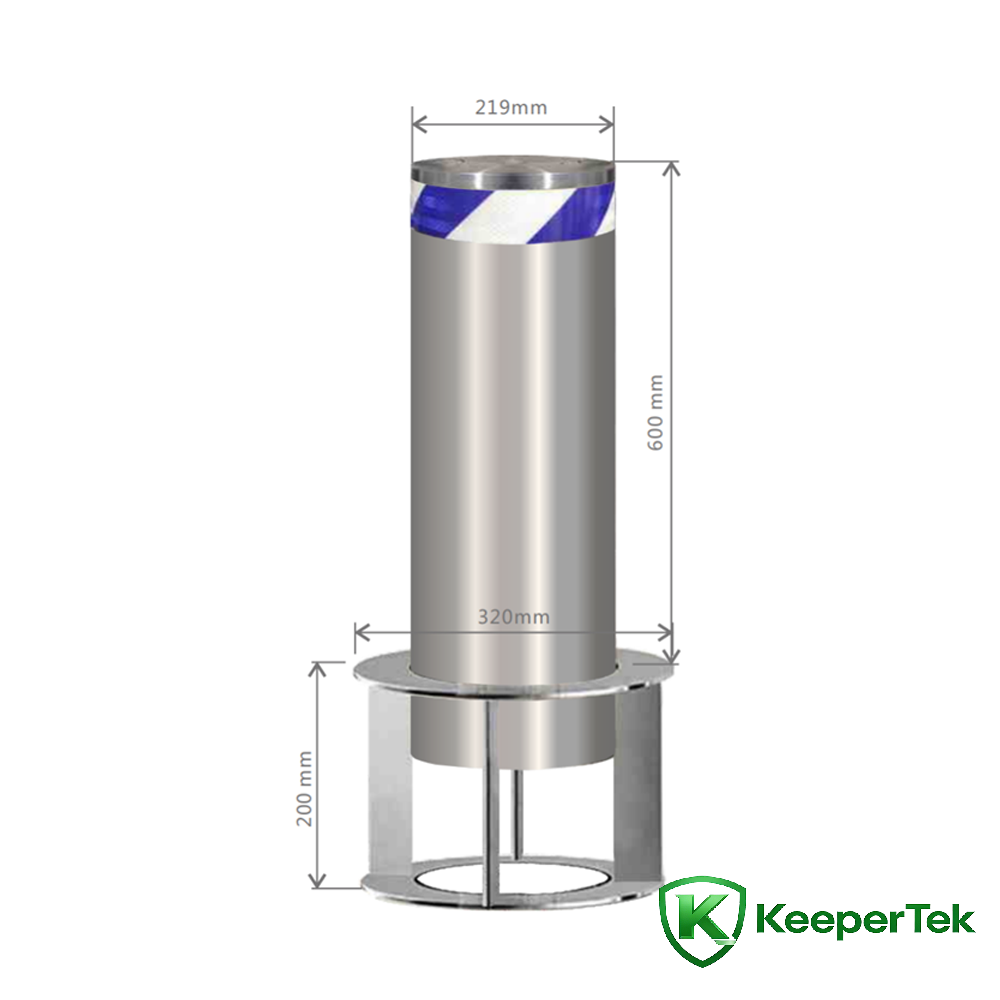

Cylinder no kɛse: 219mm

Cylinder no sorokɔ: 600mm

Cylinder no kɛse: 6mm

Cylinder nneɛma: 304 dade a ɛnyɛ den

Bokiti a wɔde ahyɛ mu no ho nkyerɛkyerɛmu: 320mmx320mmx200mm

Nsuo ntumi nkɔ mu grade: IP68

Adwumayɛ mu hyew: -35°C～75℃

Flange nkyerɛkyerɛmu: flange ntwemu 320mm x ne kɛse 6mm

Kɔkɔbɔ sɛnkyerɛnne: ultra-high brightness reflective film

Su

Wubetumi de kanea a wɔde hyɛ mu a anyinam ahoɔden ahyɛ mu, anaasɛ wubetumi agyaw kanea a wɔde hyɛ mu no na wɔadum anyinam ahoɔden;

Sɛ wɔde 5CM trɛw reflective film di dwuma a, reflectivity no betumi adu bɛboro 90%;

Panel flange kɛse yɛ 6mm;

Flange no mu duru a ɛwɔ adum no atifi yɛ 6mm;

Adum a wɔahyɛ da ayɛ a ɛko tia nhyiam no ho ka sua na wontumi nkɔ baabi foforo. Mpɛn pii no, wɔfata ma akwan a wɔato mu na ɛyɛ nnwinnade a ɛho hia ma mmeae a wɔatew wɔn ho ne mmeae afoforo.；

Atifi flange no betumi ayɛ customized ne texture, OEM, ne nea ɛkeka ho.；

Gye customization a ɛnyɛ gyinapɛn tom；

Nsiesiei ahorow a wobetumi apaw

Ɔsorokɔ: ɔsorokɔ 400mm, ɔsorokɔ 800mm, ɔsorokɔ 1000mm, ɔsorokɔ 1200mm, sorokɔ 1500mm

Ne kɛse: 8mm kɛse, 10mm kɛse, 12mm kɛse, 16mm kɛse, 20mm kɛse

Diameter: 168mm ntwemu, 273mm ntwemu, 325mm ntwemu, afoforo
