Adum a wɔma so a wɔko tia basabasayɛ

24V Low voltage pure anyinam ahoɔden a wɔma so adum KT-DX08

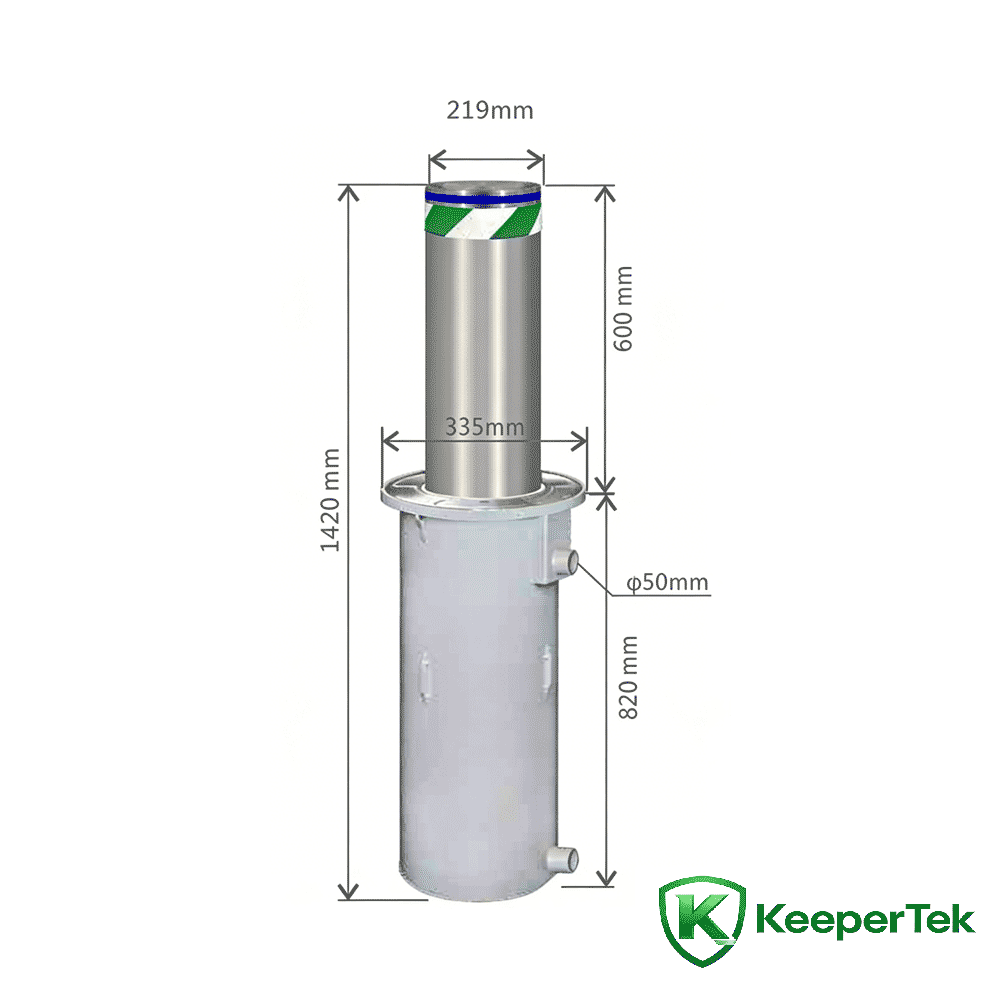

Mfiridwuma mu nsusuwii ahorow

Cylinder no kɛse: 219mm

Cylinder no sorokɔ: 600mm

Cylinder no kɛse: 6mm

Cylinder nneɛma: 304 dade a ɛnyɛ den

Ahoɔhare a wɔde ma nneɛma so: 6S～13S

Embedded bokiti nkyerɛkyerɛmu: diameter 395mm x bun 820mm

Nsuo ntumi nkɔ mu grade: IP68

Adwumayɛ mu hyew: -35°C～75℃

Flange nkyerɛkyerɛmu: 395mm × 10mm

Nneɛma a wɔde ma: 24V

Tumi: 200W

Kɔkɔbɔ nsɛnkyerɛnne: ultra-high brightness reflective film, LED akanea

Emergency function: Wɔde EPS ntɛmpɛ ahoɔden a wɔde ma ne button biako a wɔde sian ahyɛ mu

Control mode: Wobetumi de control box no adi dwuma ama obiakofo control/wired station control/wireless remote control

Dwumadi ahorow a wɔatrɛw mu: tumi krataa krataa a wohu/ogya alarm/akwan a wɔfa so di dwuma nhyehyɛe nkitahodi

Su

DC 24V kronkron anyinam ahoɔden, ahobammɔ voltage;

Wiring a ɛnyɛ den, control line biako pɛ na ɛho hia ma control box ne set of lifting columns, na ɛmma wire ho ka nkɔ fam；

Wobetumi de abɔ 24VUPS tumi a wɔde ma no so de ahwɛ ne so；

Nsuo ntumi nkɔ mu grade IP68, ɛda so ara tumi de di dwuma sɛnea ɛsɛ mpo bere a wɔde ahyɛ nsu mu akyi:

Ɔdan a ɛyɛ den na ɛyɛ den, adesoa kɛse tumi；

Sɛ wɔde 5CM trɛw reflective film di dwuma a, reflectivity no betumi adu bɛboro 90%;

Optional high-brightness LED kɔkɔbɔ kanea bar betumi ama anadwo kɔkɔbɔ nkɛntɛnso no ayɛ kɛse yiye.

Panel flange no gye anti-slip nhwɛso nhyehyɛe, na flange no kɛse yɛ optional 10mm / 6mm;

Flange no mu duru a ɛwɔ adum no atifi yɛ 10mm/6mm;

Wogye customization a ɛnyɛ gyinapɛn tom. Wobetumi ayɛ adum a wɔma so no nyinaa kɛse, ne kɛse, ne sorokɔ, sɛnea ɛte, ahoɔhare, ne nea ɛkeka ho no sɛnea wɔpɛ.

Nsiesiei ahorow a wobetumi apaw

Ɔsorokɔ: ɔsorokɔ 400mm, ɔsorokɔ 800mm, ɔsorokɔ 1000mm, ɔsorokɔ 1200mm, sorokɔ 1500mm

Ne kɛse: 8mm kɛse, 10mm kɛse, 12mm kɛse, 16mm kɛse, 20mm kɛse

Diameter: 168mm ntwemu, 273mm ntwemu, 325mm ntwemu, afoforo
